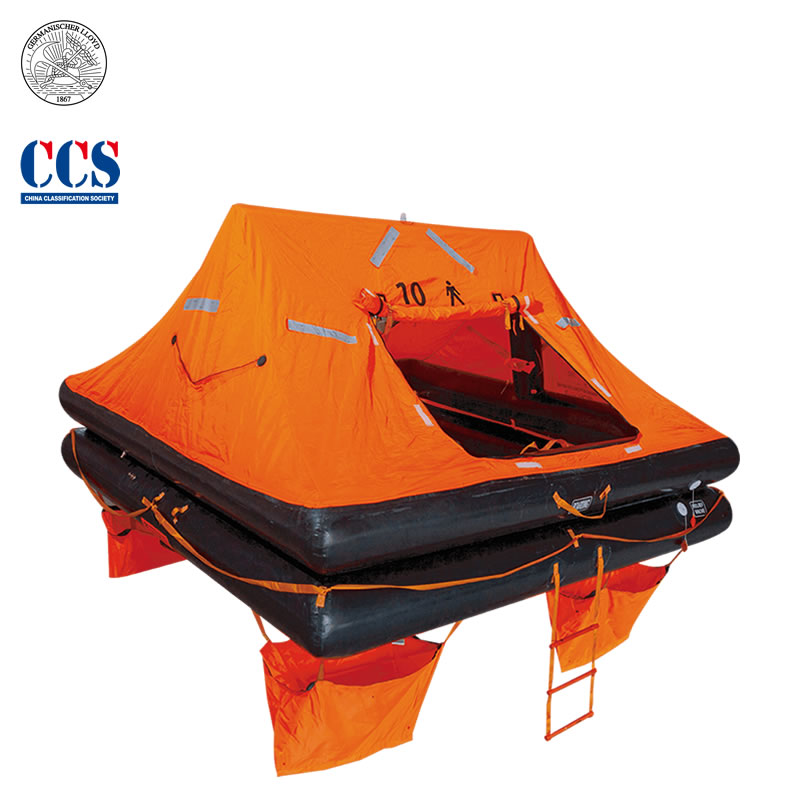

ISO Yacht Life Rafts
ISO Yacht Life Rafts are ISO approved inflatable life rafts, apply to yachts up to 24 metres in length, these rafts provide GL(CE) and CCS certificates.
- ISO 9650-1 and ISO 9650-2
- Capacity from 4Pers to 16 Pers
- Max. Storage Height 6m
- GL(CE) or CCS Certificate
ISO Yacht Life Rafts are a compact, inflatable emergency craft stored on recreational vessels(yachting and sailing). ISO 9650-1 life rafts for Offshore & transocean and ISO 9650-2 life rafts for coastal areas.
Description
Comply with:
- ISO 9650-1 Small craft — Inflatable liferafts — Part 1: Type I and Type II (2022)
- ISO 9650-3 Small craft — Inflatable liferafts — Part 3: Materials(2009)
Tests Carried Out:
In accordance with ISO 9650.
ISO Yacht Life Raft Specification:
| Model | Type | Capacity | Life Raft Size | Max. Storage Height | Weight of Gas | GRP Container | Valise | Pack List |
| Y4 | Throw Overboard | 4Pers | 1634×1634×1170 mm | 6m | （1600+120）×1 g | 800×530×320 mm/≤42 Kg | 680×400×250 mm/≤37 Kg | ISO(＜24h) |
| Y6 | Throw Overboard | 6Pers | 1956×1956×1200 mm | 6m | （2400+200）×1 g | 800×530×320 mm/≤54 Kg | 710×420×280 mm/≤46 Kg | ISO(＜24h) |
| Y8 | Throw Overboard | 8Pers | 2224×2224×1300 mm | 6m | （3000+240）×1 g | 855×550×330 mm/≤57 Kg | 710×460×280 mm/≤52 Kg | ISO(＜24h) |
| Y10 | Throw Overboard | 10Pers | 2458×2458×1350 mm | 6m | （3600+280）×1 g | 920×570×340 mm/≤66 Kg | 800×470×300 mm/≤57 Kg | ISO(＜24h) |
| Y12 | Throw Overboard | 12Pers | 2667×2667×1450 mm | 6m | （4400+300）×1 g | 920×570×340 mm/≤74 Kg | 850×500×300 mm/≤64 Kg | ISO(＜24h) |
| Y14 | Throw Overboard | 14Pers | 3128×3128×1500 mm | 6m | （5740+400）×1 g | 995×565×400 mm/≤83 Kg | 1000×570×410 mm/≤72 Kg | ISO(＜24h) |
| Y16 | Throw Overboard | 16Pers | 3330×3330×1600 mm | 6m | （5740+400）×1 g | 995×565×400 mm/≤88 Kg | 1000×570×410 mm/≤77 Kg | ISO(＜24h) |
| YJ4 | Throw Overboard (ISO 9650-2) |
4Pers | 1414×1414×1170 mm | 6m | （1260+100）×1 g | 760×490×300 mm/≤41 Kg | 680×400×250 mm/≤36 Kg | ISO(＜24h) |
| YJ6 | Throw Overboard (ISO 9650-2) |
6Pers | 1690×1690×1200 mm | 6m | （1800+130）×1 g | 800×530×320 mm/≤49 Kg | 680×400×250 mm/≤41 Kg | ISO(＜24h) |
| YJ8 | Throw Overboard (ISO 9650-2) |
8Pers | 1917×1917×1250 mm | 6m | （2400+200）×1 g | 800×530×320 mm/≤55 Kg | 710×420×280 mm/≤45 Kg | ISO(＜24h) |
| YZ4 | Throw Overboard Self-righting | 4Pers | 1896×1514×1350 mm | 6m | （1800+130）×1 g | 800×530×320 mm/≤42 Kg | 680×400×250 mm/≤37 Kg | ISO(＜24h) |
| YZ6 | Throw Overboard Self-righting | 6Pers | 2314×1772×1450 mm | 6m | （3000+240）×1 g | 800×530×320 mm/≤54 Kg | 710×420×280 mm/≤46 Kg | ISO(＜24h) |
| YZ8 | Throw Overboard Self-righting | 8Pers | 2865×1860×1500 mm | 6m | （3600+280）×1 g | 920×570×340 mm/≤66 Kg | 800×470×300 mm/≤57 Kg | ISO(＜24h) |
| YZ10 | Throw Overboard Self-righting | 10Pers | 2998×2153×1550 mm | 6m | （4400+300）×1 g | 920×570×340 mm/≤74 K | 850×500×300 mm/≤64 Kg | ISO(＜24h) |
| YZ12 | Throw Overboard Self-righting | 12Pers | 3266×2325×1600 mm | 6m | （4500+320）×1 g | 995×565×400 mm/≤88 Kg | 1000×570×410 mm/≤77 Kg | ISO(＜24h) |
