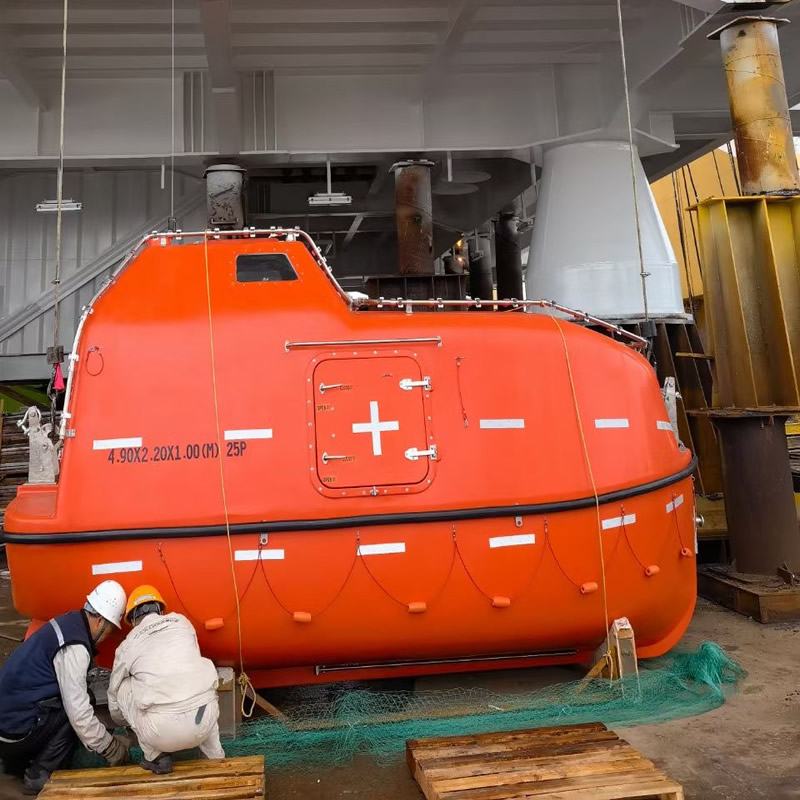

Totally Enclosed Lifeboats

MARINE SAFETY EQUIPMENT

Totally Enclosed Lifeboats are different from free-fall lifeboats which launched by free-falling into water, they are launched by a gravity lifeboat davit.

Capacity from 26 Pers to 90 Pers
Length from 4.9m to 8.5m
Lifeboat and Rescue Boat Dual-purpose
MED or CCS Certificate

Totally Enclosed Lifeboats are suitable for passenger vessels, large cargo ships and platforms, designed for safe evacuation with full enclosure, protecting occupants from harsh conditions.

Description

Comply with:

Regulations 21, 31 and 34, Chapter III of International Convention for the Safety of Life at Sea, 1974, as Amended.

Chapter IV of MSC.48(66) International Life-saving Appliance Code, as amended by MSC.218(82), MSC.272(85) and MSC.320(89).

Part 1 of MSC.81(70) Revised Recommendation on Testing of Life-saving Appliance as amended by MSC.226(82), MSC.274(85), MSC.321(89) and MSC.323(89).

Tests Carried Out:

In accordance with recommendation on testing of Life-saving Appliances, IMO Res. MSC.81(70) Part 1, as amended by IMO Res. MSC.226(82), IMO Res. MSC.274(85), IMO Res. MSC.321(89), IMO Res. MSC.323(89), IMO MSC/Circ.1006 and IMO MSC.481(102) – Type II.

Totally Enclosed Lifeboat Specification:

Totally Enclosed Lifeboat

WJB50C

WJB50F

WJ57C

WJ57F

WJ58C

WJ58F

WJ75C

WJ75F

WJ85C

WJ85F

Length overall

4.90m

5.70m

5.80m

7.50m

8.50m

Beam

2.20m

2.30m

2.70m

2.86m

3.30m

Height

1.0m

1.15m

1.25m

Freeboard

0.33m

0.41m

0.33m

0.35m

Max. Capacity(Lifeboat)

26 Pers

30 Pers

45 Pers

68 Pers

90 Pers

Max. Capacity(Rescue Boat)

6 Pers

Full Loaded Weight(Lifeboat)

4255kg

4550kg

4748kg

5086kg

6432.5kg

6712.5kg

8830kg

9110

11825kg

12125kg

Hull Material

Fire-retardant G.F.R.

Engine

380J-3

Output

20.6kW

Fuel Tank

185L

190L

220L

Speed

≥6knots

Hook Distance

4.50m

5.30m

5.50m

7.10m

8.00m

Release Mechanism SWL

40KN

63KN

65KN

Sprinkler System

100m³/h

Air System

45L x 3

Loose Equipment

According to SOLAS

Applicable
