Aldis lamp is named after its inventor, Arthur Cyril Webb Aldis, who designed the portable version used widely by the British Navy and eventually adopted as a global maritime standard.
All ships of over 150 gross tonnage, as well as all passenger ships regardless of size, when engaged on international voyages, must be fitted with a daylight signalling lamp.
The tests for daylight signalling lamps comply with IEC60945:2002 incl. IEC 60945 Corr.1:2008. ISO 25861:2007.
| Type | CXD8 |
| Power Source | DC 24V and 60 W |
| Light Source | Halogen Lamp (White) |
| Visibility Distance | 2 n. mile |
| Light Intensity | 60,000 cd |
| Protection IP | IP 56 |
| Light Beam Angle | 6° |
| Telescope Magnification | ×4 |
| Telescope Visual Angle | 3° |
| Lamp Holder | G6.35 |
| Plug | 4-Pin |
| Cable | 9.5mm×5m |
| Lamp Spares | Weakener ×1, Spare bulb ×3, Reflector ×1, Screwdriver ×1 |

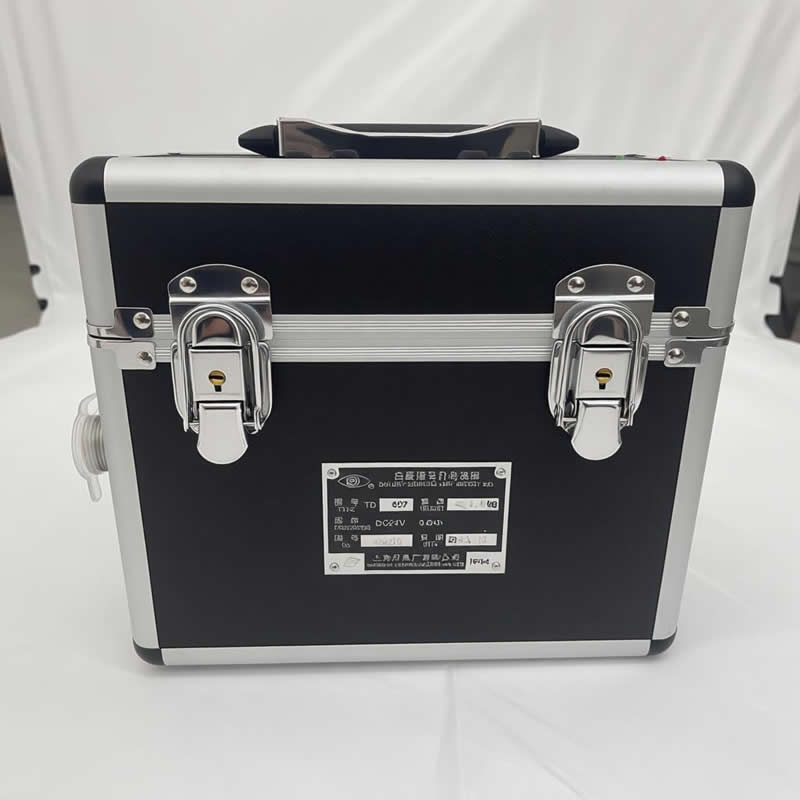

| ALDIS Lamp Battery | Lead Acid Battery |
| DC 12 V and 8 Ah | |

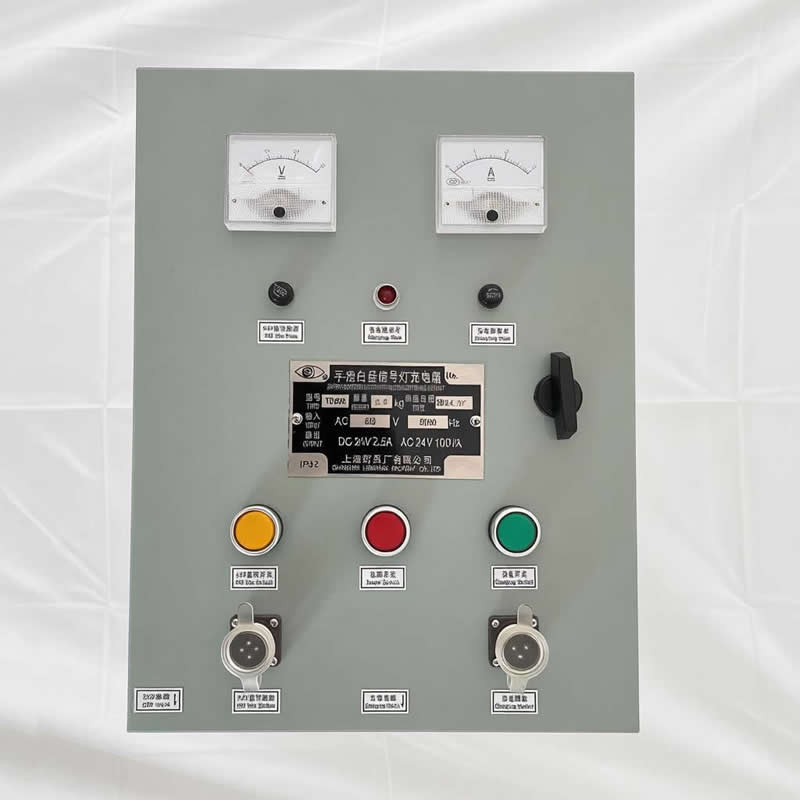

| ALDIS Lamp Battery Charger | Input: AC 110~220 V, 50/60 Hz |
| Output: DC24 V, 2.5 Ah or AC24 V, 100 VAh |
