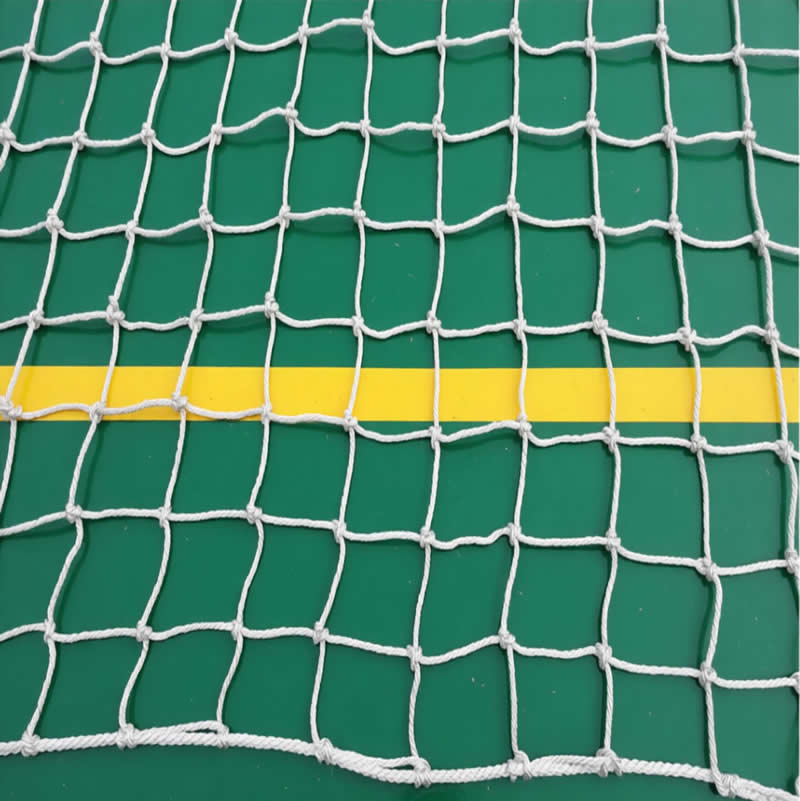

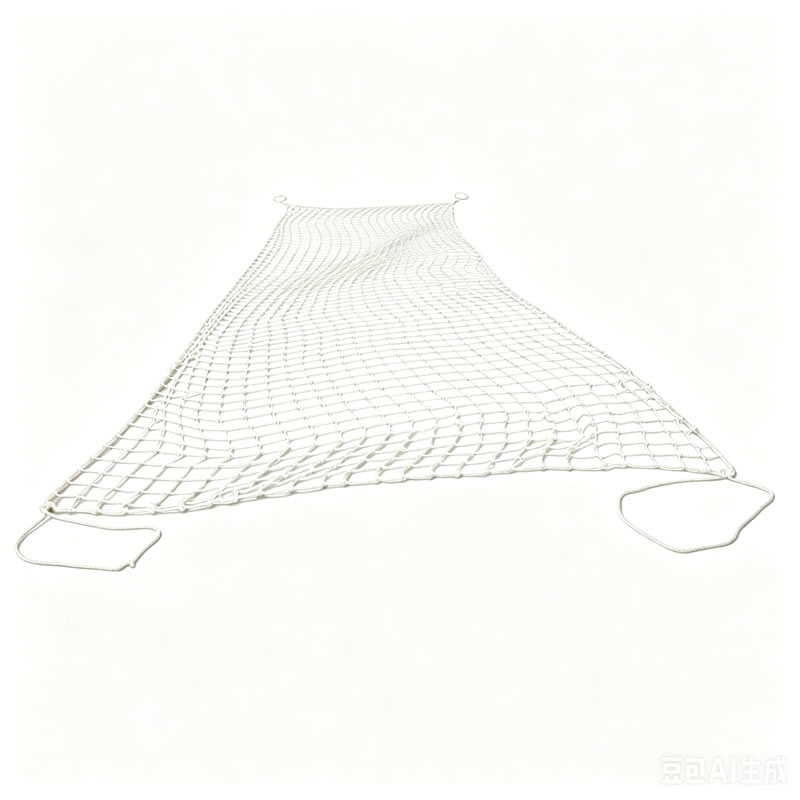

Gangway Safety Net

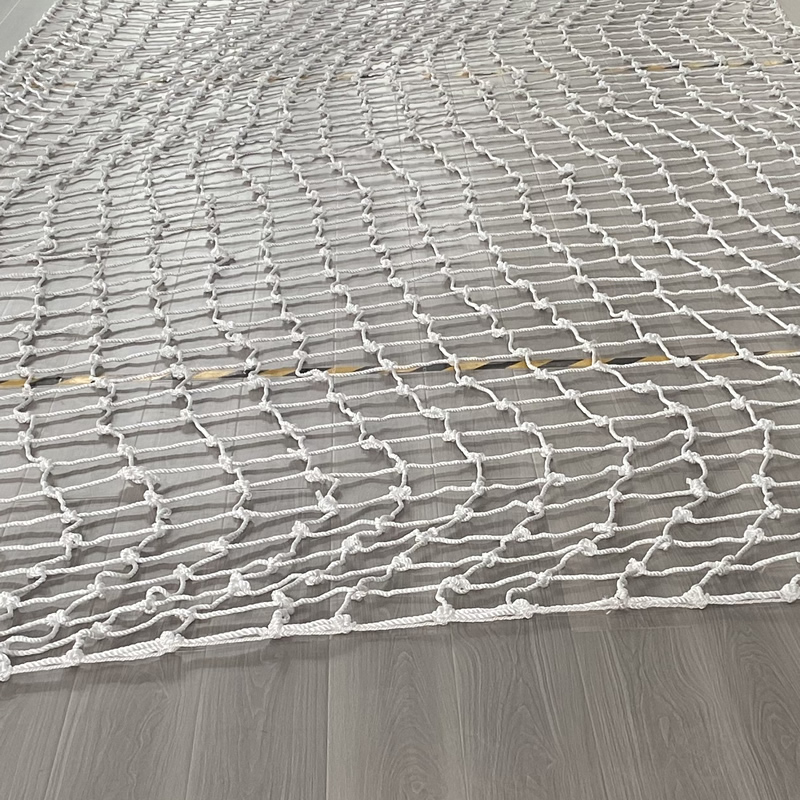

Gangway Safety Nets, made from polypropylene(PP) with rim rope size 10mm and mesh rope size 8mm, mesh size 150mm, widely rigged beneath gangways and accommodation ladders to prevent fall.
- High strength PP rope
- White color or green color available
- Can be made to desired size
- Third party inspection report upon request
Gangway safety nets should be installed where a person might fall from the means of embarkation or between the ship and the quayside. For security of life and property, all mesh ropes are securely knitted in position.
Description
Introduction:
As per SOLAS Regulation II-1/3-9 and IMO MSC.1/Circ.1331, a gangway safety net must be rigged beneath gangways and accommodation ladders to prevent falls into the water or onto the quayside. Gangway safety nets are mandatory wherever a person could fall between the ship and the shore, usually extending the full length and width of the access area.
Intended for:
Marine and offshore gangways and accommodation ladders
Gangway Safety Nets Specification:
| Product | Gangway Safety Net | |
| Net Size | 3×3m, 3×4m, 4×6m, 4×10m, 4×12m, 4×16m, 5×10m (as per required) | |
| Material | Polypropylene (PP), Polyamide (Nylon) | |
| Rope Type | 3-strand twisted rope or 6-strand crossed rope | |
| Rim Rope Size | 10mm | |
| Mesh Rope Size | 8mm (5~8mm as per required) | |
| Mesh Size | 150mm (100mm as per required) | |
| Knot Type | Manmade Knot (Knotless as per required) | |
| Rope Breaking Point | ≥1150 kgf (10mm PP) | ≥800 kgf (8mm PP) |
| ≥1500 kgf (10mm Nylon) | ≥1100 kgf (8mm Nylon) | |
| Net Impact Strength | ≥400-pound(180kgs)/42inches (1.1m) | ≥120 kgs/7m (Grade I) |
| ≥100 kgs/7m | ≥120 kgs/2m (Grade II) | |
| Compliant to | OSHA and EN 1263-1 | GB5725 |
