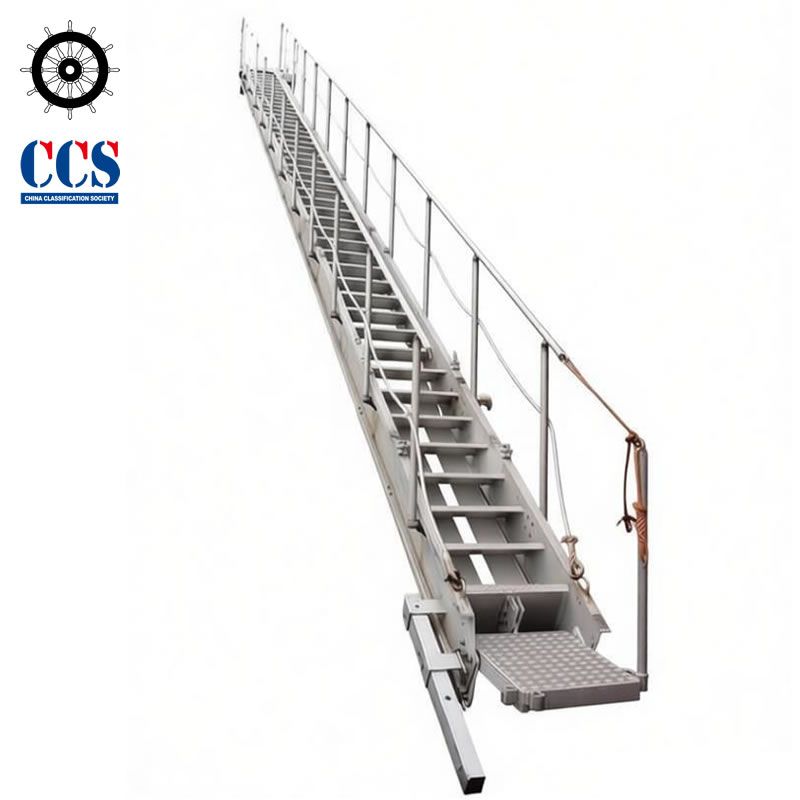

Aluminium Alloy Accommodation Ladder

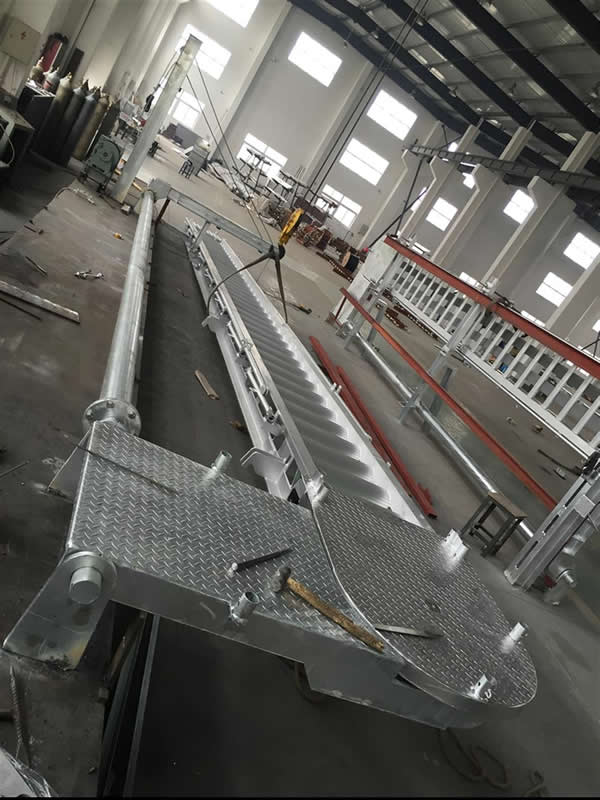

Accommodation ladder with turntable and stowing system

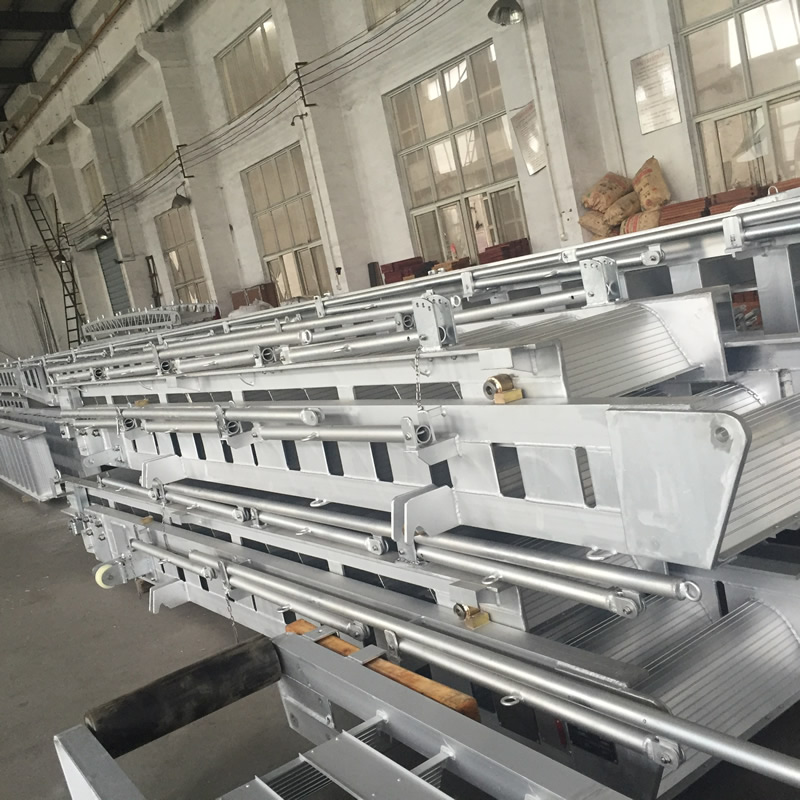

Telescopic Type Accommodation Ladder
Aluminium Alloy Accommodation Ladder
Accommodation ladder with turntable and stowing system
Telescopic Type Accommodation Ladder
In Stock

Accommodation Ladder

Accommodation Ladder designed under ISO 5488 is used on merchant ships to enable crew and pilots to embark and disembark safely.

  • Available with revolving-platform ladder and fixed-platform ladder
  • Available with fixed curved step or self-levelling step
  • Available with turntable and stowing system
  • MED or CCS certified

Made of seawater resistant aluminium alloy, with anti-slip fixed arc step or self-levelling step which provide a safe walking surface. Working inclination angles maximum 55 degrees from horizontal, make accommodation ladders are suitable for most of vessel types.



Categories: ,

Description

Comply with:

  1. Clause 3-9,Chapter II-1 of the SOLAS 1974 and MSC.256(84) for its Amendment
  2. MSC.1/Circ.1331,Guidelines for the construction, installation, maintenance and inspection/survey of means of embarkation and disembarkation
  3. ISO 5488:2015 – Ships and marine technology – Accommodation ladders

Tests Carried Out:

Prototype testing per ISO 5488 (2015) §8. After installation, onboard tests and inspection as specified in MSC.1/Circ.1331 §3.6 shall be carried out. For on board testing, reference is made to IMO circular MSC.1/Circ.1331 – IMO “Guidelines for Construction, Installation, Maintenance and Inspection of means of Embarkation and Disembarkation”.

Product Description:

Accommodation ladder as Revolving-platform ladder Type with the maximum inclination degree of 55 degree, with the following dimensions:
o Length = 3.6m – 18m (12-60 steps) in 0.6m increments (2-steps), step distance 300mm
o Width = 600 mm

o Length = 18.2m – 30.1m (52-86 steps) in 0.7m increments (2-steps), step distance 350mm
o Width = 600 mm

Pilot accommodation ladder as Fixed-platform ladder Type with the maximum inclination degree of 45 degree, with the following dimensions:

o Length = 3.6m – 18m (12-60 steps) in 0.6m increments (2-steps), step distance 300mm
o Width = 600 mm

o Length = 18.2m – 30.1m (52-86 steps) in 0.7m increments (2-steps), step distance 350mm
o Width = 600 mm

Accommodation Ladder Specification:

Type Revolving-platform ladder and Fixed-platform ladder
Length 12 – 86 steps, 3.6- 30.1 m
Step Distance 300 mm (12-60 steps) 350 mm (52-86 steps)
Width 600 mm
Max. Load/Step 735 N / 75 kg
Max. Inclination Angle 55° (Pilot accommodation ladder 45°)
Max. load – Bottom Plate: 150 kg
Max. load – Upper Plate: 4 000 N/m2
Step Material 5A02
Ladder Frame Material 5A05
Platform Material Q235B
Stanchion/Handrail Material 6063-T6/2A12/5A05

Related Products

SOLAS Pilot Ladders
MARINE LADDERS

Pilot Ladder

Aluminium Gangway Ladder
Gangways

Aluminium Gangway Ladder

Rope Ladder GS-A
MARINE LADDERS

GS-A Rope Ladder

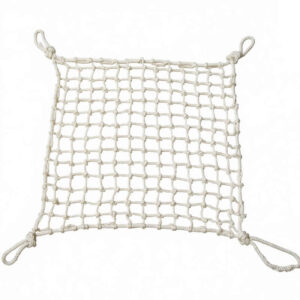

Gangway Safety Net
