Pilot Ladder
Pilot Ladder is a form of rope ladder, used for pilots to embark and disembark safely, comply with ISO 799 and SOLAS requirements, approved by MED.
- Non-slip hardwood
- Corrosion resistance aluminium clamp
- Anti-exposure chock
- High-density rubber step with steel lining
- Mildew resistant manila/sisal rope

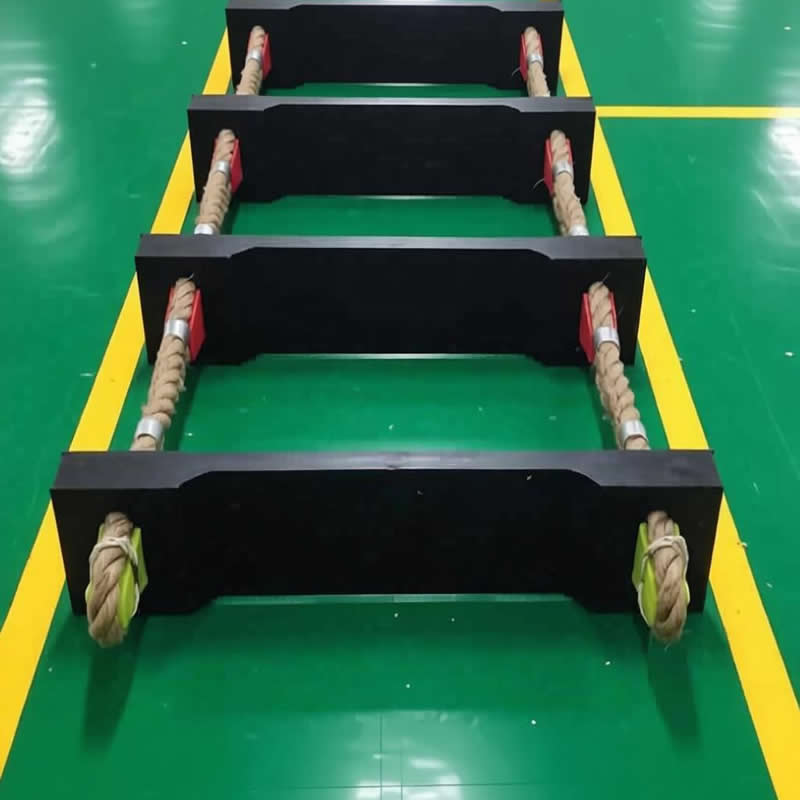

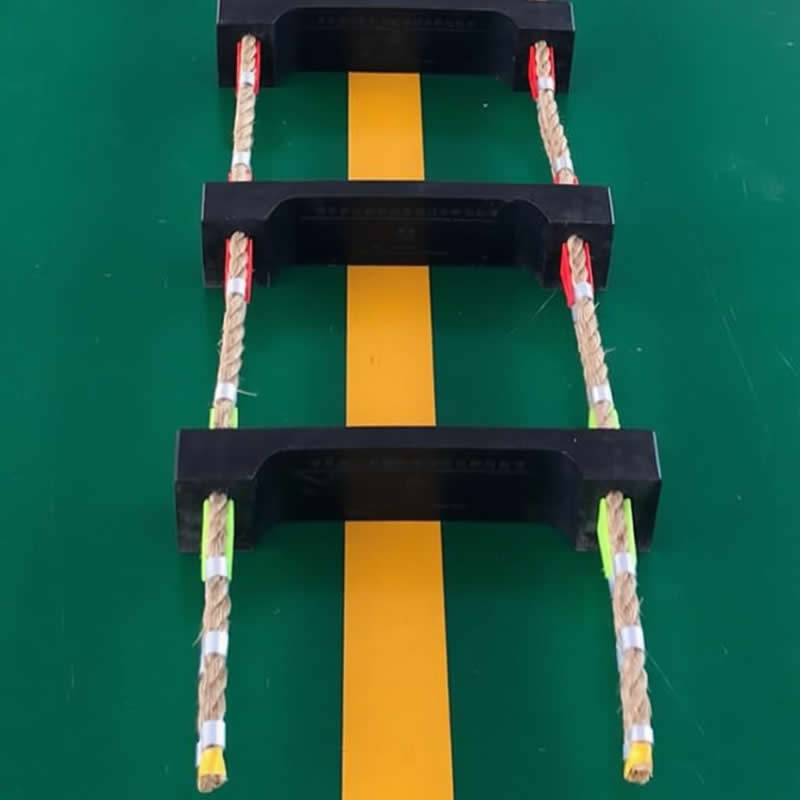

Pilot Ladder normally has two types, type A comes with exact length and type B offer extra length of upper section tie down rope. Bottom termination has endless type and standard type.
Description
Introduction:
ISO 799 Pilot Ladder is provided enable maritime pilots to embark and disembark merchant ships safely while underway.
Comply with:
- Regulations 4, 11 and 34, Chapter III of International Convention for the Safety of Life at Sea, 1974, as Amended
- Chapter I and VI of MSC. 48 (66) International Life-saving Appliance Code
- ISO 799-1:2019 Ships and marine technology – Pilot ladders
- IMO Res.A.1045(27)
Tests Carried Out:
In compliance with ISO 799-1:2019.
Material Standard:
Aluminium Ferrule (Clamp) – ISO 209
Plastic Chocks – ISO 877
Manila/Sisal Rope – ISO1181
Thimble – ISO 1461 or ISO 15510
Pilot Ladder Specification:
| Product | Wooden Pilot Ladder | |
| Type | Type A and B | |
| Maximum Length | 40m | |
| Side Ropes | 20mm Manila or Sial | ≥24 KN |
| Securing Ropes | 28mm Manila | ≥48 KN |
| Steps | 525×115×28 mm | Hardwood |
| Spreader Steps | 1800×115×28 mm | Hardwood |
| Rubber Steps | 525×115×45 mm | Rubber with steel lining |
| Aluminium Ferrule | H type | O type |
| Step Fixtures | Plastic Chock | |
| Certificate | MED or CCS | |
