Aluminium Clamps Crimping Machine
Aluminium Clamps Crimping Machine is a hand operation crimping tool to fix aluminium clamps for pilot ladder and embarkation ladder.
- Crimping Gun can be tailored

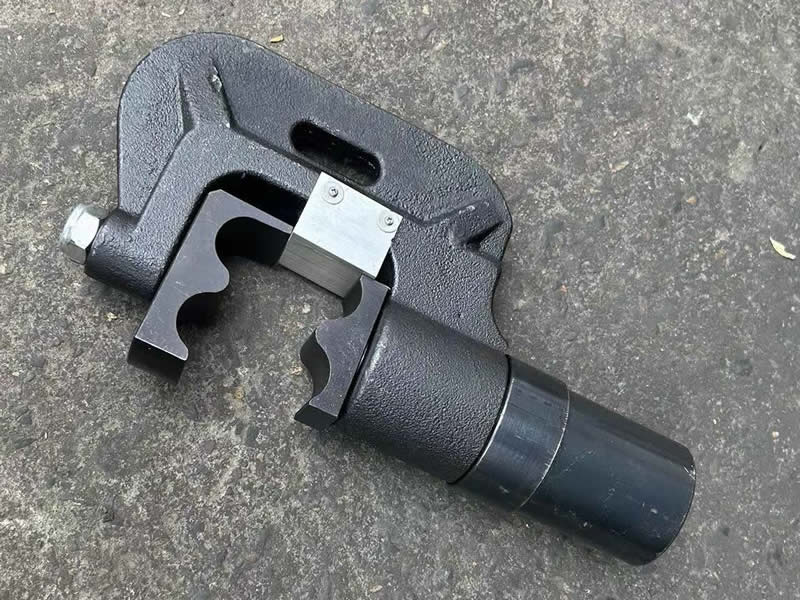

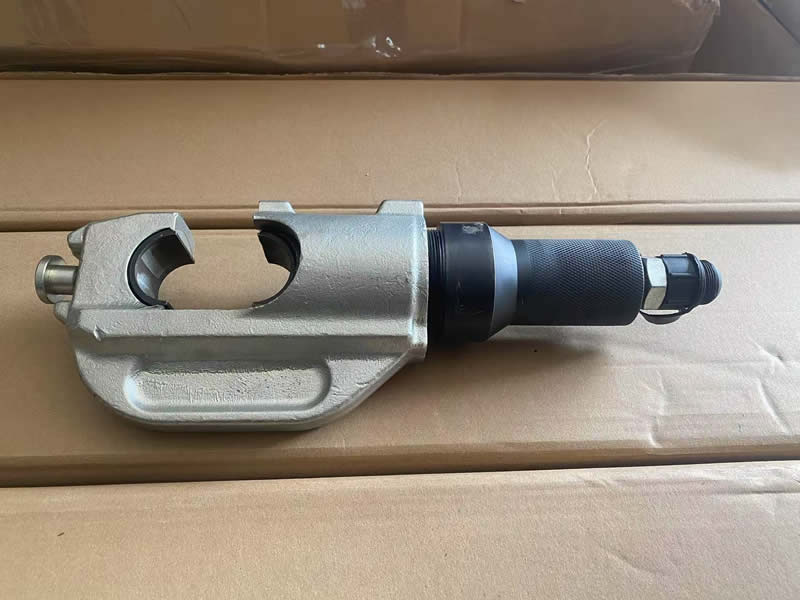

- Available for O Type and H Type Aluminium Clamp
- Hand Operation with DC 24V Power
- Working Pressure Adjustable.

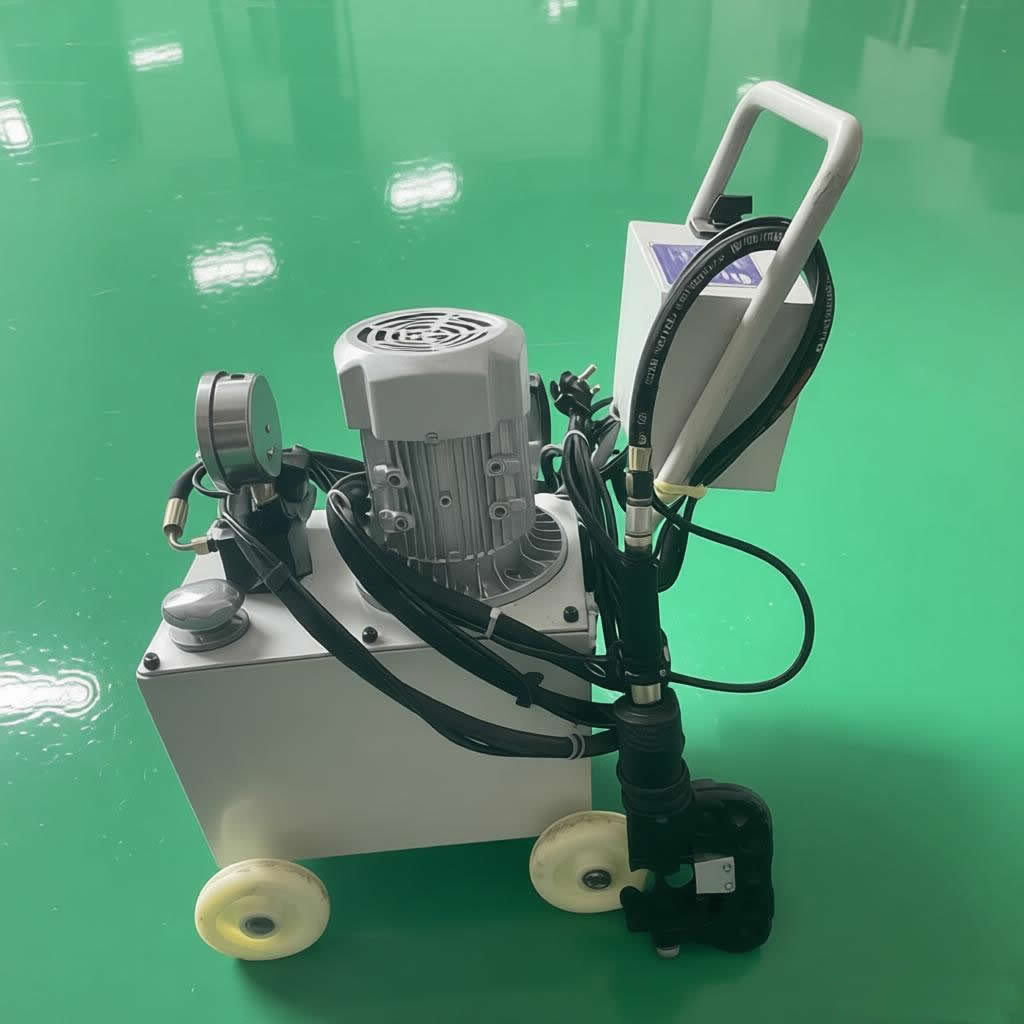

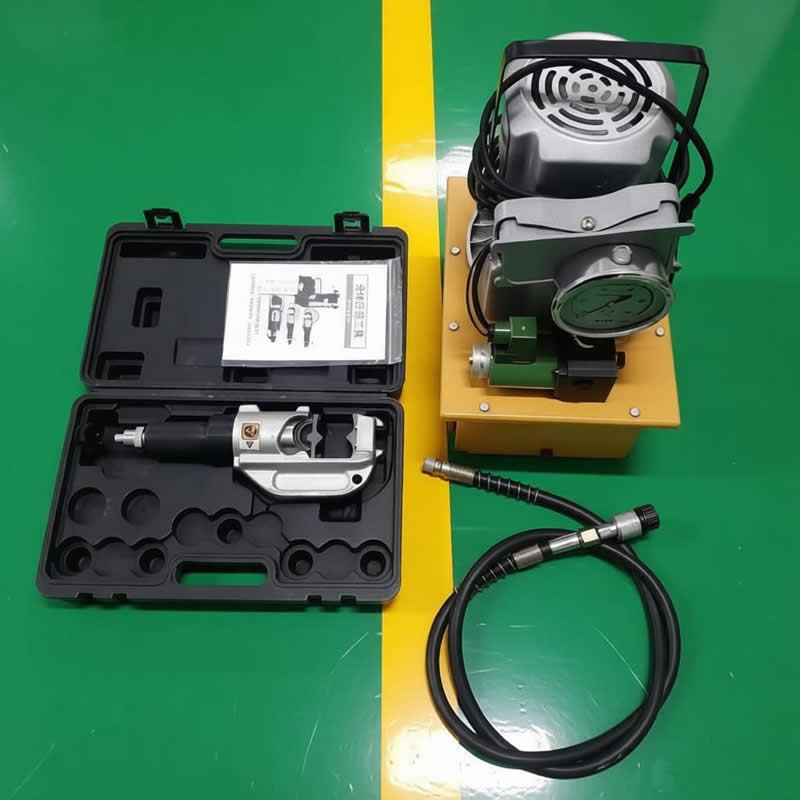

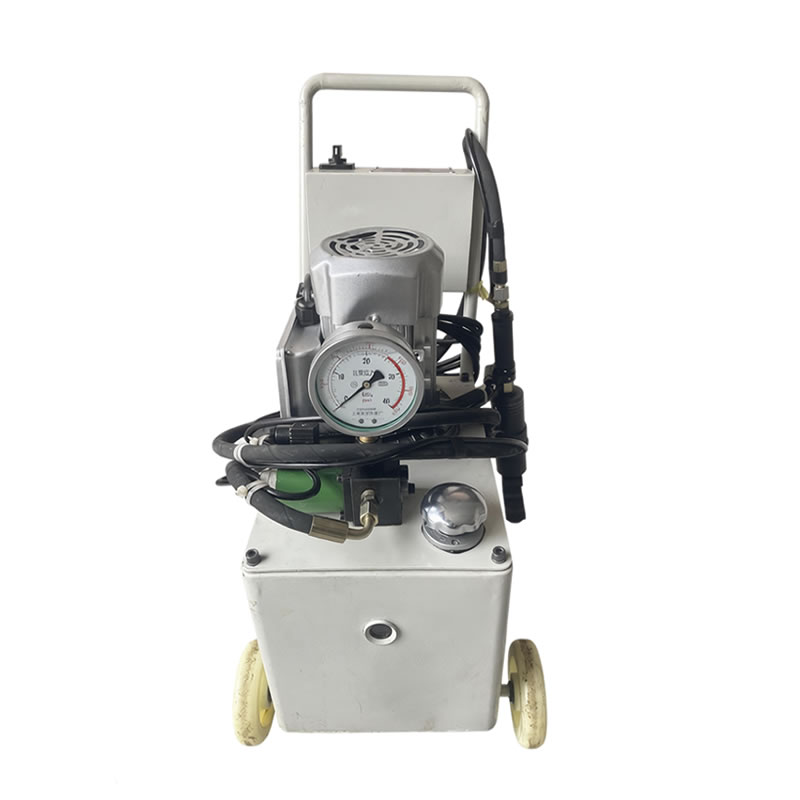

Aluminium Clamps Crimping Machine is composed of crimping gun and pump station, crimping gun is hand operation with DC 24V without harmful to human body, and pump staion is 220V/50HZ with a piston pump(or gear pump).
Description
Introduction:
Aluminium Clamps Crimping Machine is for replacing old hand whippings during the manufacture of pilot ladder and embarkation ladder. It’s fast and economical.
Intended for:
Manufacture of rope ladder, includes pilot ladder, embarkation ladder, jocb ladder…
Aluminium Clamps Crimping Machine Specification:
| Model | DMY | ||
| Aluminium Clamp Type | H Type | O Type | |
| Connection with Crimping Gun | Straight or Right Angle | ||
| Crimping Gun Operation Power | DC 24 V | ||
| Pump Station Operation Power | AC 220 V / 50 HZ (Gear Pump 380 V / 50 HZ) | ||
| Pump Type | Piston Pump | Piston Pump | Gear Pump |
| Motor Power | 0.75 kw | 0.75 kw | 1.5 kw |
| Working Pressure | 30 MPa | 15 MPa | 12 MPa |
| Max. Pressure | 40 MPa | 40 MPa | 15 MPa |
| Flow Rate | 3.5 L/min | 3.5 L/min | 4.5 L/min |
| Speed | 1400 r/min | 1400 r/min | 1400 r/min |
| Pressure Adjust | Available | ||
| Tank Volume | 16L | ||
| Hydraulic Oil | #22 or #32 | ||
