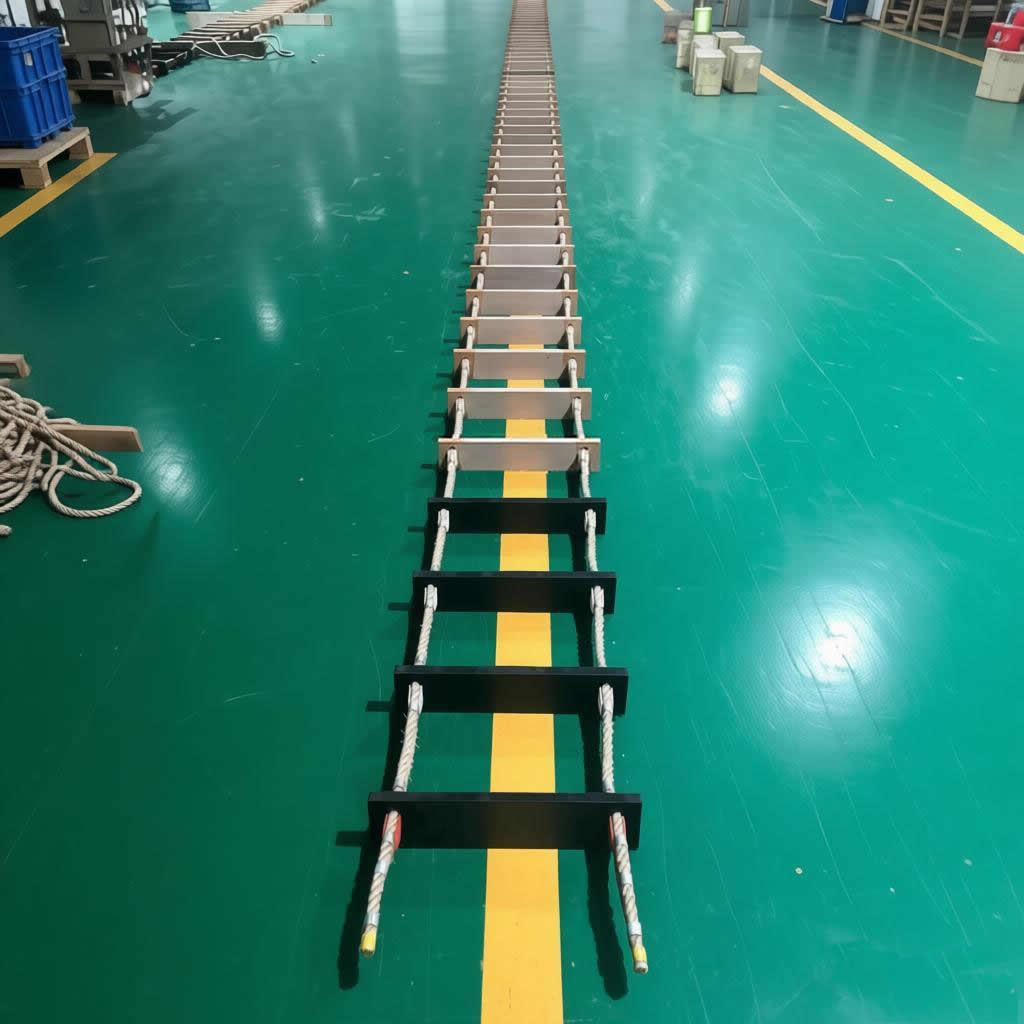

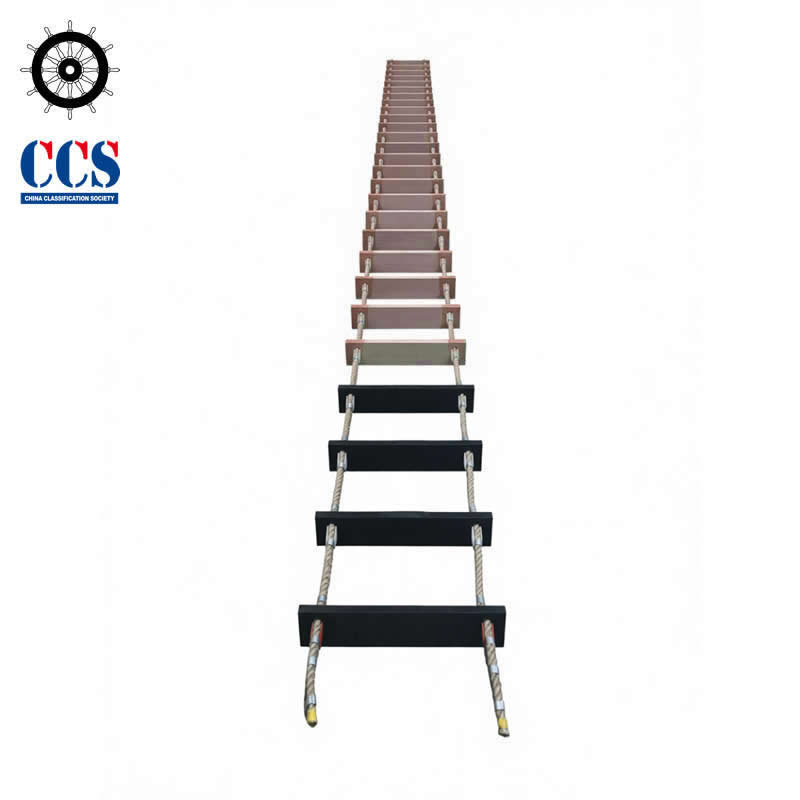

Embarkation Ladder
Embarkation Ladder is a rope ladder used on a merchant vessels to enable passengers and crews to safely embark to lifeboat or liferaft, comply with ISO 5489 and SOLAS requirements, approved by MED.
- Non-slip hardwood
- Corrosion resistance aluminium clamp
- Anti-exposure chock
- High-density rubber step with steel lining
- Mildew resistant manila/sisal rope
Embarkation ladder made of mildew-resistant manila rope (quality 1), hardwood and rubber steps, meeting ISO 5489:2024. Bottom termination has endless type and standard type.
Description
Introduction:
Embarkation ladder is a flexible emergency rope ladder installed at survival‑craft embarkation stations onboard seagoing vessels, used to provide safe, controlled descent for crew and passengers from ship deck down to survival crafts.
Comply with:
- Regulation 4 and 34, Chapter III of International Convention for the Safety of Life at Sea, 1974, as Amended.
- Chapter VI of MSC.48(66) International Life-saving Appliance Code.
- ISO5489-2024 Ships and marine technology -Embarkation ladders.
- IMO Res.MSC.81(70), as amended
Tests Carried Out:
Tested in ISO5489:2008(E), Sec. 5 and IMO Res.MSC.81(70)
Material Standard:
Aluminium Ferrule (Clamp) – ISO 209
Plastic Chocks – ISO 877
Manila/Sisal Rope – ISO1181
Thimble – ISO 1461 or ISO 15510
Specification:
| Product | Wooden Embarkation Ladder | |
| Maximum Length | 60m | |
| Side Ropes | 20mm Manila or Sial | ≥24 KN |
| Securing Ropes | 28mm Manila | ≥48 KN |
| Steps | 525×115×28 mm | Hardwood |
| Rubber Steps | 525×115×45 mm | Rubber with steel lining |
| Aluminium Ferrule | H type | O type |
| Step Fixtures | Plastic Chock | |
| Certificate | MED or CCS | |
