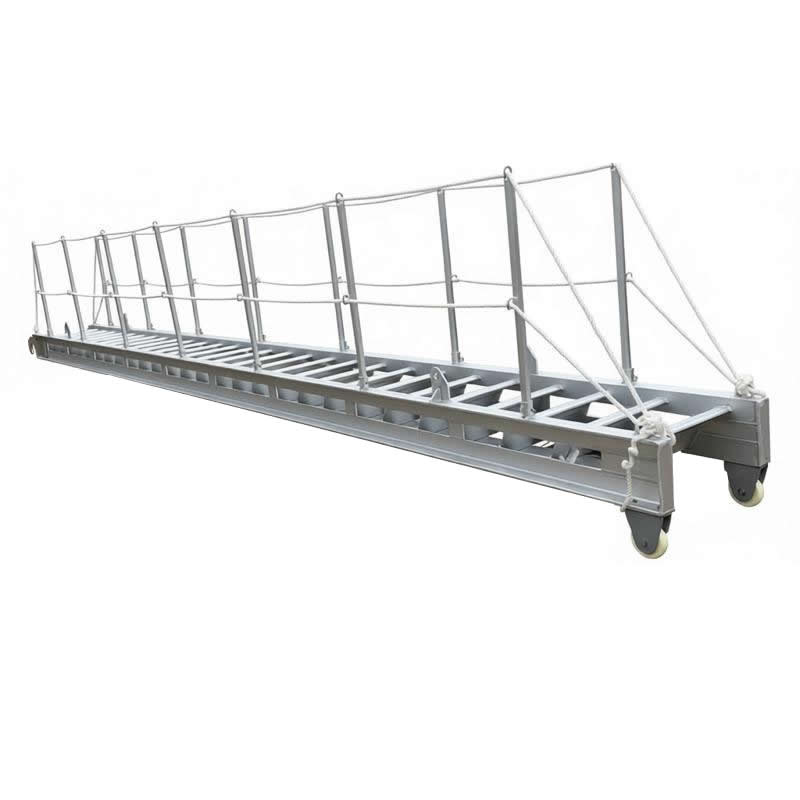

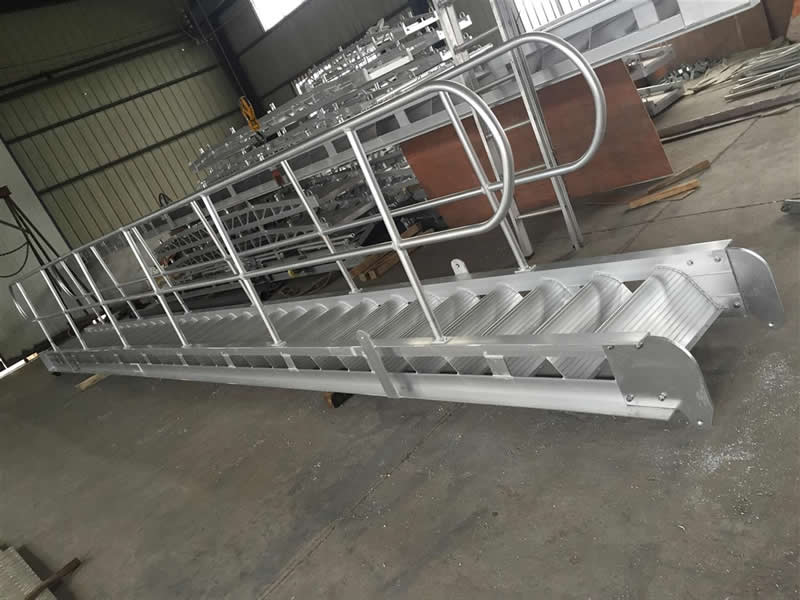

Arc Steps Aluminum Gangway
Arc Steps Aluminum Gangway is type B aluminium alloy gangway with anti-slip arc step surface, comply with ISO 7061 and SOLAS approved.
- Length available from 4m to 20m
- Complete with handrail stanchions and sockets
- Comply with ISO 7061
- MED or CCS approved
This surface is designed directly as anti-slip arc step to position side stringers and support loading, the lower side of which is equipped with a guard board, with the maximum inclination degree of 55°, defined as type B gangway.
Description
Comply with:
- Clause 3-9,Chapter II-1 of the SOLAS 1974 and MSC.256(84) for its Amendment
- MSC.1/Circ.1331,Guidelines for the construction, installation, maintenance and inspection/survey of means of embarkation and disembarkation
- ISO 7061:2024 – Ships and marine technology – Aluminium shore gangways for seagoing vessels
Tests Carried Out:
Design verification tests according to ISO 7061 (2015), each gangway delivery shall undergo the testing procedures specified in ISO 7061 §9.3, for on board testing, reference is made to IMO circular MSC.1/Circ.1331 – IMO “Guidelines for Construction, Installation, Maintenance and Inspection of means of Embarkation and Disembarkation”.
Application:
Aluminium shore gangways.
Arc Steps Aluminum Gangway Specification:
| Type | Type B |
| Step | Anti-slip arc step |
| Length | 4~20 m |
| Width | 600 mm |
| Material of Frame | 5A05 (Aluminium Alloy) |
| Material of Step | 5A02 (Aluminium Alloy) |
| Max. Live Load | 75 kg / step |
| Min./Max. Inclination | 12-55° |
