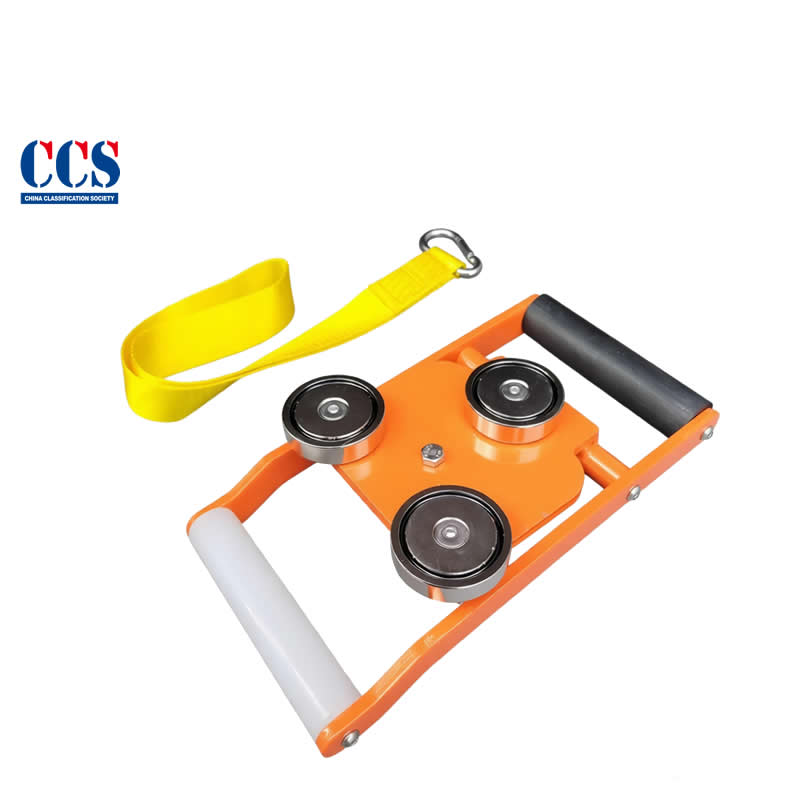

Pilot Ladder Holding Magnet
Pilot Ladder Holding Magnet also called yellow magnet, is specially designed to make pilots safely by providing removablle anchor points for the pilot ladder on the ship’s side.
- Removable anchor points
- Withstand aggressive marine environments
- Powder-coating in safety yellow for high visibility
- Resin encapsulation of magnetic elements
Yellow magnet is lightweight around 3 kg, provides over 800 kg of clamping force, even through multiple layers of paint, salt scale, and grime on a ship’s hull. A Derlin roller makes the magnetic attachment easy to apply and release.
Description
Comply with:
- Compliance with SOLAS Chapter V/23 and IMO/IMPA recommendations.
Tests Carried Out:
- Proof load test
- The calibration status and adequacy of the test measurements devices used has been satisfactorily verified
- Visual examination
Pilot Ladder Holding Magnet Specification:
| Type | Lift Load | Pull Load | Magnet | Magnet Size | Certificate |
| HM-300 | 300 kg | 330 kg | NdFeB | 3×Dia.60 mm | CCS/ RINA Test Report |
| HM-500 | 500 kg | 380 kg | NdFeB | 3×Dia.75 mm | CCS/ RINA Test Report |
| HM-400 | 400 kg | 480 kg | NdFeB | 3×Dia.75 mm | ABS Test Report |
| HM-500 | 500 kg | 600 kg | NdFeB | 4×Dia. 60 mm | ABS Test Report |
| HM-600 | 600 kg | 800 kg | NdFeB | 4×Dia. 67 mm | DNV Test Report |

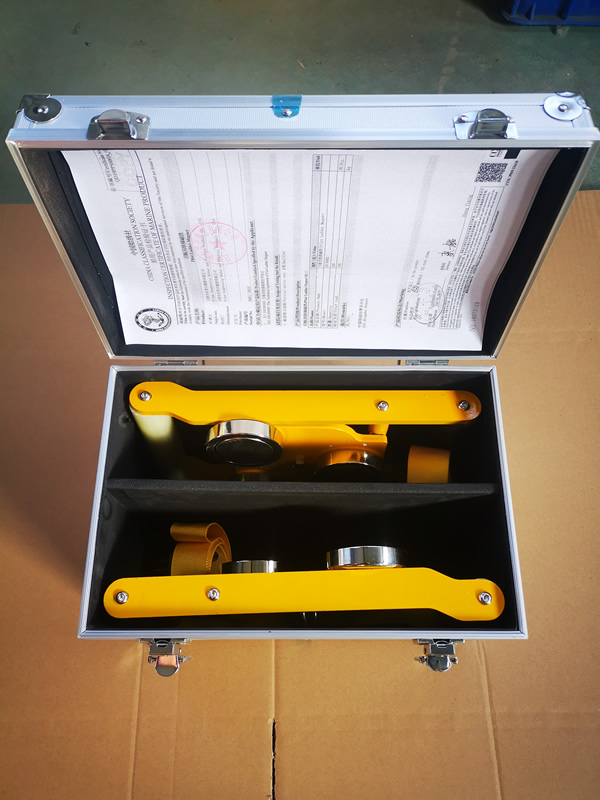

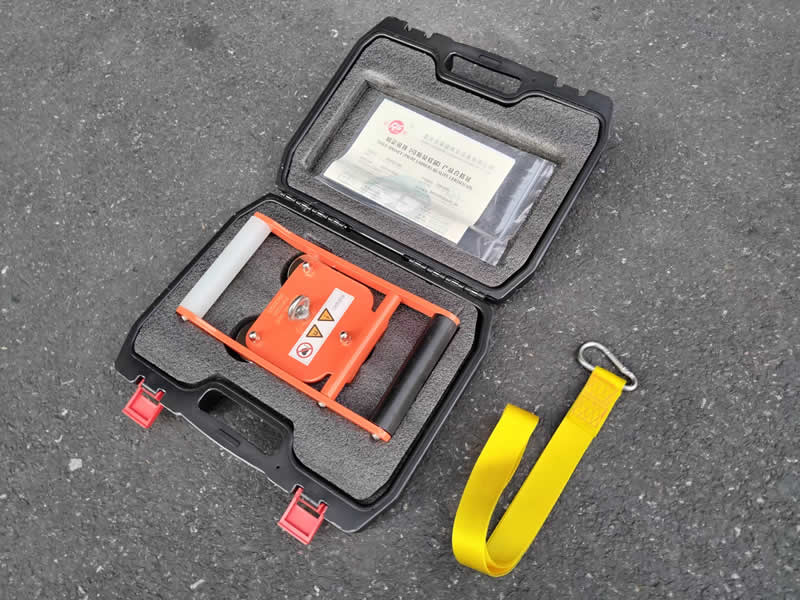

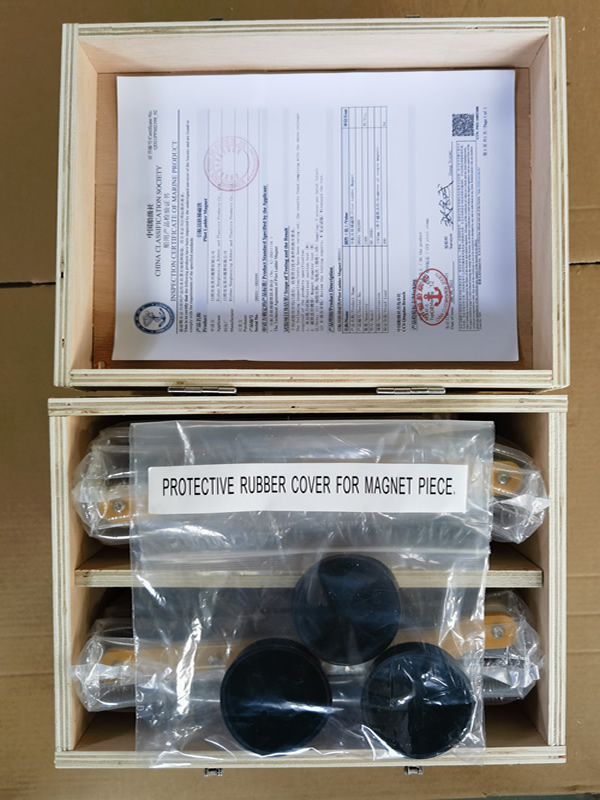

| Packing | Carton/ HDPE Case/ Aluminium Box/ Wooden Box | ||||
