"Your safety is our responsibility - choose top marine safety equipment from here."

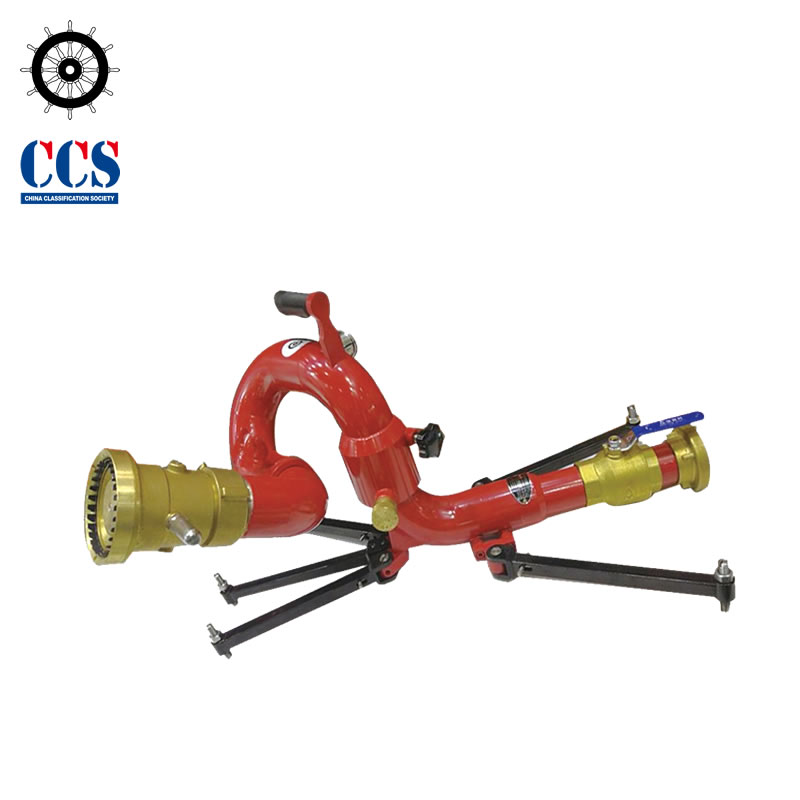

Mobile Water Monitor
Mobile Water Monitor is designed for container ships which constructed on or after 1 January 2016 which carry five or more tiers of containers on or above the weather deck.
- Material: SUS316 and Copper Alloy
- Portable and high-capacity (≥1000 L/min)
- Meets IMO MSC.1/Circ.1472
- CCS or MED certificate
Regulation states that vessels carrying containers on or above the weather deck, constructed on or after January 2016 shall carry at least one water mist lance. Further, vessels designed to carry five or more tiers of containers on or above the weather deck, shall carry a number of mobile water monitors.
Description
Comply with:
- Regulations 10, Chapter II-2 of International Convention for the Safety of Life at Sea, 1974, as amended by MSC.365(93)
- MSC.1/Circ.1472 Guidelines for The Design, Performance, Testing and Approval of Mobile Water Monitors Used for the
Protection of On-Deck Cargo Areas of Ships Designed and Constructed to Carry Five or More Tiers of Containers on or
above the Weather Deck
Tests Carried Out:
Tests has been carried out in compliance with IMO MSC.1/Circ.1472 (Guidelines for the design, performance,testing and approval of mobile water monitors used for the protection of on-deck cargo areas of ships designed and constructed to carry five ormore tiers of containers on or above the weather deck).
Field of Application:
Mobile Water Monitor is used for Protection of On Deck Container Stacks, in accordance with Reg.II-2/10.7.3.2 of SOLAS ’74 as amended.
Ships < 30m beam: At least two units
Ships ≥ 30m beam: At least four units
Mobile Water Monitor Specification:
| Type | PSYC |
| Model | Mobile |
| Nominal Capacity | ≥60 m³/h (1000L/min) @ 0.4 MPa |
| Nominal Working Pressure | 0.4 MPa |
| Maximum Working Pressure | 1.0 MPa |
| Nominal Throw Length | 40 m @ 0.4 MPa |
| Horizontal Rotation | 270 ° |
| Vertical Rotation | 0 ° ~ 90 ° |
| Water Inlet Dimension | 2” (DN50) |
| Nozzle Type | Dual-Purpose Spray and Jet |
| Corrosion Resistance Material | SUS316 and Anti-Corrosion Copper Alloy |
| Weight | ≤ 23 Kg |
| Main Components: | Inlet Fittings, Monitor Waterway, Swivel Fittings, Discharge Nozzle, Shut-off Device, Carrying Handle |
