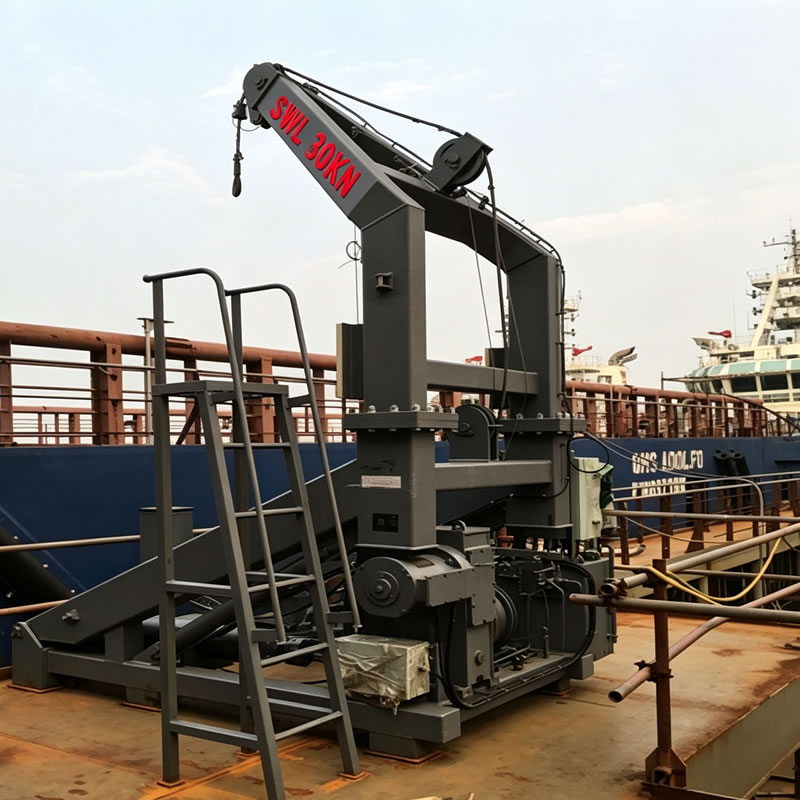

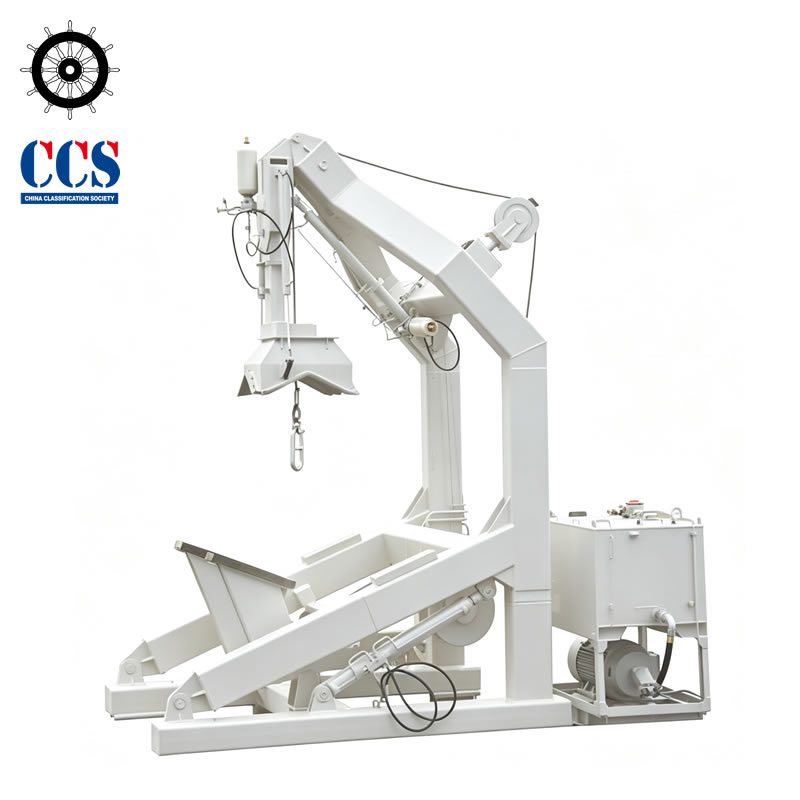

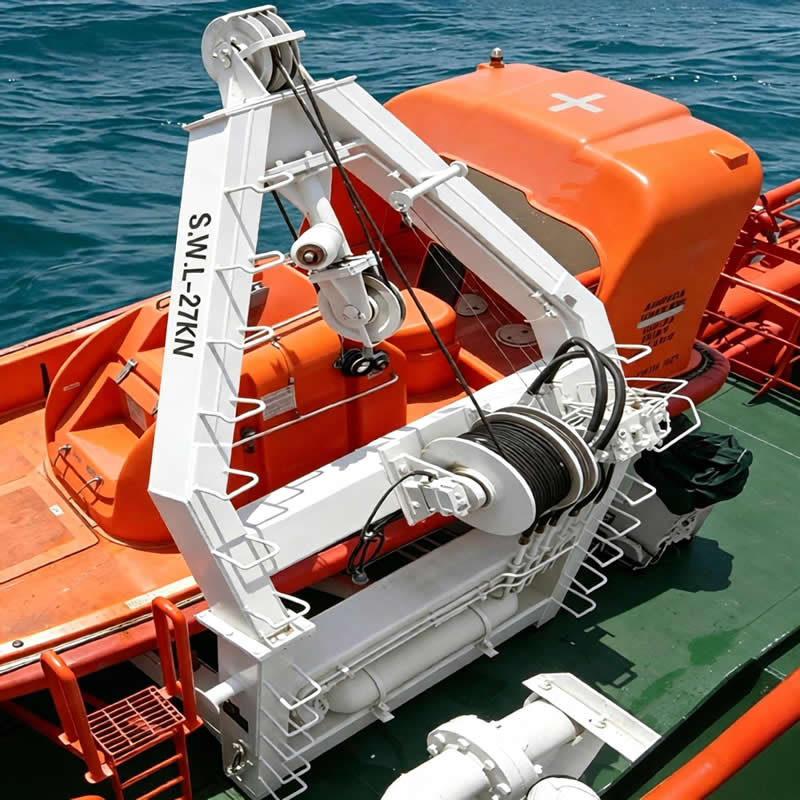

A-Frame Fast Rescue Boat Davit
A-Frame Fast Rescue Boat Davit is a dedicated marine launch & recovery appliance designed for fast rescue crafts (FRC), strictly complies with SOLAS.
- Equipped with wave compensation unit
- Optional with anti-swing device
- Power & Gravity dual safety design
- MED or CCS certificate
A-Frame davit is A-shaped rigid frame structure delivers high structural rigidity, stable lifting performance and compact deck layout, complying fully with global maritime mandatory codes for shipboard rescue craft deployment.
Description
Introduction:
A-Frame Fast Rescue Boat Davit, adopting hydraulic power + gravity emergency launch design, it can rapidly deploy FRB for man overboard rescue and emergency evacuation even under vessel power failure. Fitted with complete safety interlock systems, this davit is certified by major IACS classification societies, widely applicable to cargo ships, passenger vessels, offshore platforms and marine service craft.
Comply with:
- Regulations 4 and 34, Chapter III of International Convention for the Safety of Life at Sea, 1974, as Amended.
- Chapter I and VI of International Life-saving Appliance Code, as amended by MSC.218(82) and MSC.425(98).
- Part 1 and Part 2 of MSC.81(70) Revised Recommendation on Testing of Life-saving Appliance,as amended by MSC.226(82),MSC.427(98) and MSC.472(101).
- IMO 2009 MODU Code and its amendments
- Chapter 15 of Safety Code for Fixed Platform at Sea(2000)
Tests Carried Out:
In accordance with IMO Resolution MSC.81(70), as amended, Part1, Regulation 8.1
Specification:
| Model | A14 | A18 | A27 | AC27 | A30 |
| Type | A-Frame Davit | ||||
| SWL | 14 KN | 18 KN | 27 KN | 27 KN | 30 KN |
| Max. Recovery Load | 14 KN | 18 KN | 27 KN | 27 KN | 30 KN |
| Min. Lowering Load | 5 KN | 5 KN | 5 KN | 5 KN | 10 KN |
| Lifting Speed | ≥18 m/min | ≥18 m/min | ≥48 m/min | ≥18 m/min | ≥18 m/min |
| Launching Speed | 40~60 m/min | 40~60 m/min | 50~78 m/min | ≥18 m/min (Elec.)
48~60 m/min (Acc.) |
40~60 m/min |
| Hydraulic System Working Pressure | / | 16 MPa | 18 MPa | 16 MPa | 18 MPa |
| Allowable Working Inclination | Trim 20°, Heel 20° | Trim 10°, Heel 20° | Trim 20°, Heel 20° | Trim 10°, Heel 20° | Trim 10°, Heel 20° |
| Steel Wire Rope (anti-rotation) | 18×19-16-1870 | 18×19-16-1870 | 18×19-18-1870 | 18×19-18-1870 | 18×19-18-1870 |
