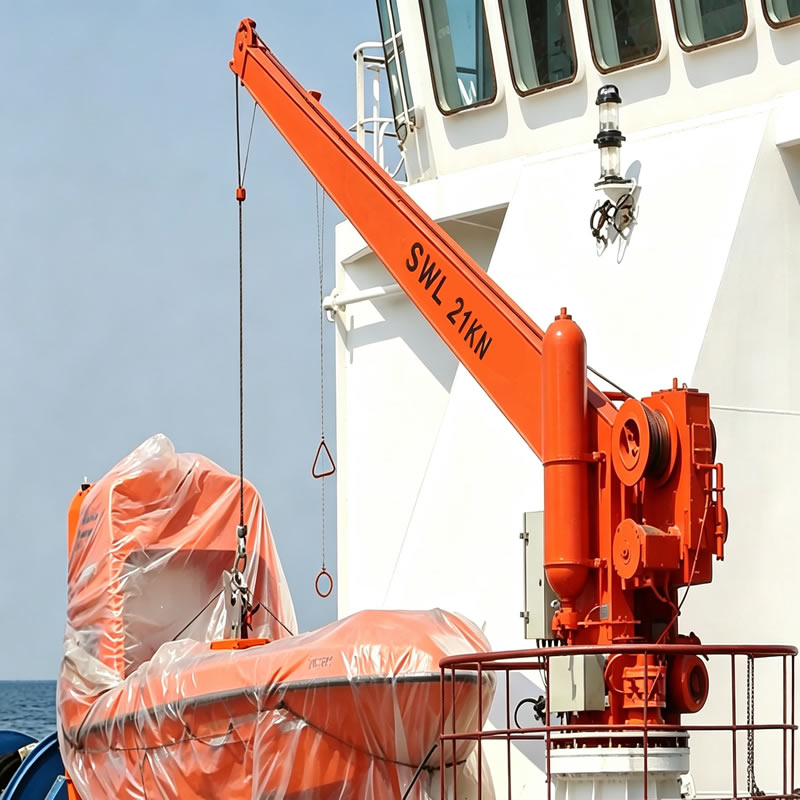

Rescue Boat Davit 21KN

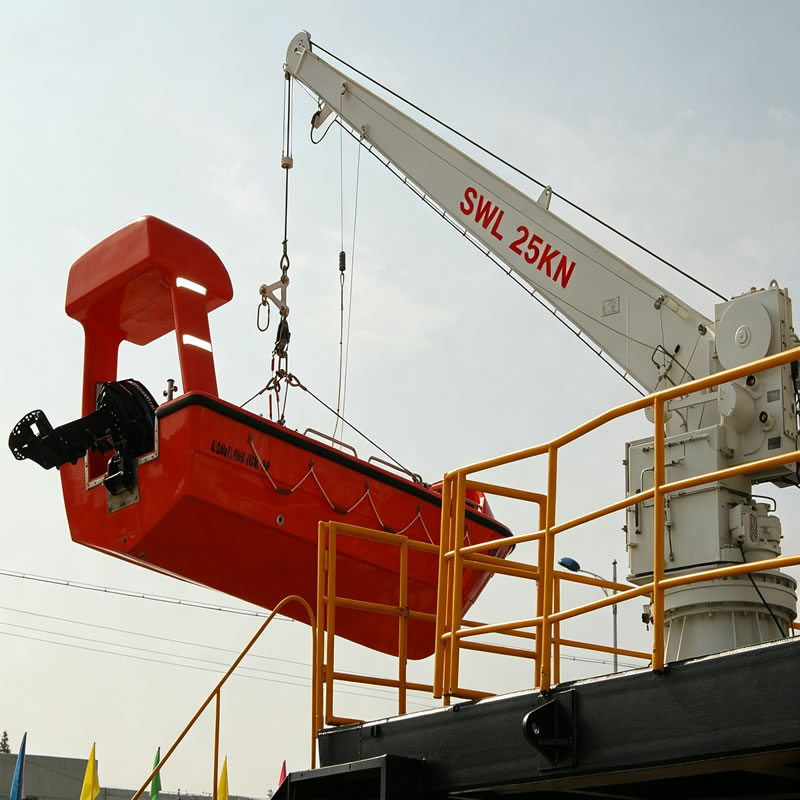

Single Arm Rescue Boat Davit 25KN

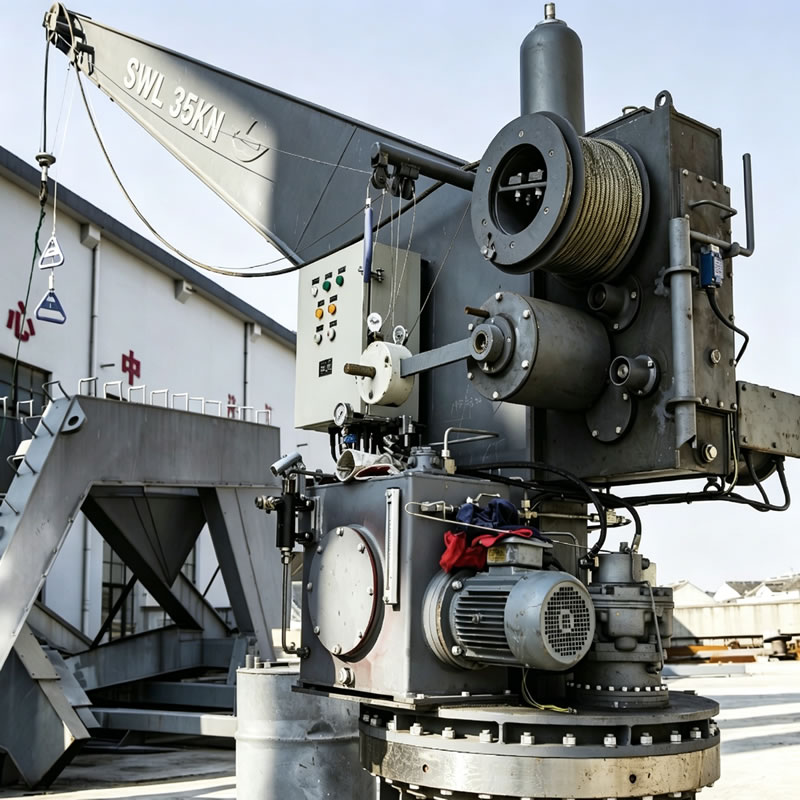

Combined Rescue Boat and Life Raft Davit
Slewing Rescue Boat and Life Raft Davit
single arm slewing davit 15KN
Rescue Boat Davit 21KN
Single Arm Rescue Boat Davit 25KN
Combined Rescue Boat and Life Raft Davit
In Stock

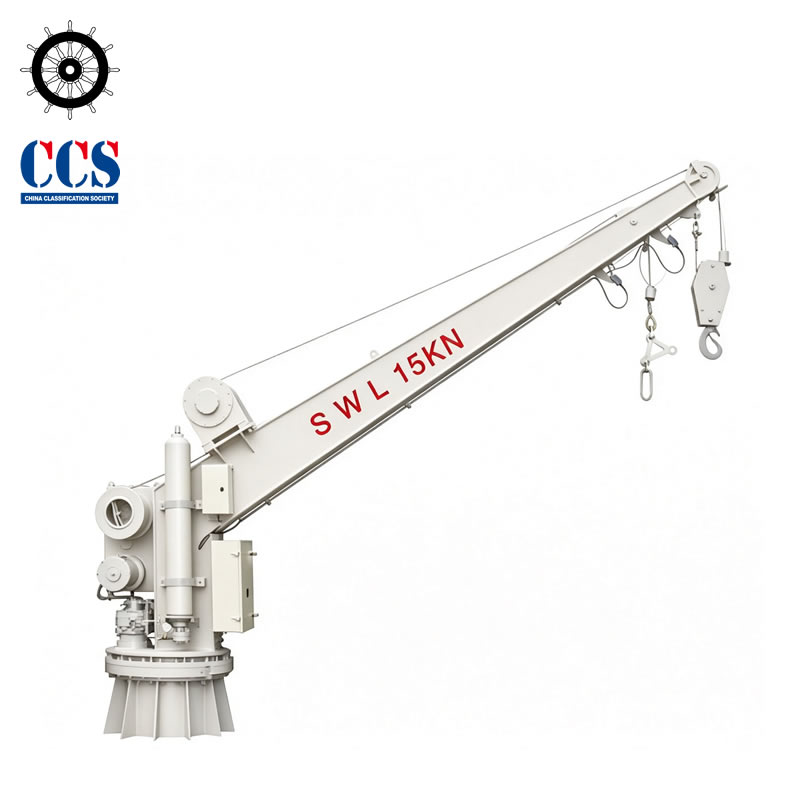

Slewing Rescue Boat and Life Raft Davit

Slewing Rescue Boat and Life Raft Davit is a combined single arm davit, designed to simultaneously carry, launch and recover both rescue boat and life raft.

  • Hydraulic or Manual drive slewing
  • Gravity lowering and Electirc lifeting
  • Equipped with life raft hook
  • Optional with electric winch or hydraulic winch when used as crane
  • MED or CCS certificate

This combined single arm davit replaces separate rescue boat davit + independent life raft davit, reducing deck occupation, simplifying piping and control layout, lowering ship construction cost.

Categories: , ,

Description

Introduction:

This slewing rescue boat and life raft davit complies with SOLAS and IMO LSA code. It adopts a single rotary jib dual-purpose structure, capable of storing, launching and recovering both rescue boat and life raft on one set of equipment, which effectively saves ship deck space.

Comply with:

  1. Regulations 4 and 34, Chapter III of International Convention for the Safety of Life at Sea, 1974, as Amended.
  2. Chapter I and VI of International Life-saving Appliance Code, as amended by MSC.218(82) and MSC.425(98).
  3. Part 1 and Part 2 of MSC.81(70) Revised Recommendation on Testing of Life-saving Appliance,as amended by MSC.226(82),MSC.427(98) and MSC.472(101).
  4. IMO 2009 MODU Code and its amendments
  5. Chapter 15 of Safety Code for Fixed Platform at Sea(2000)

Tests Carried Out:

In accordance with IMO Resolution MSC.81(70), as amended, Part1, Regulation 8.1

Specification:

Model SA15 SA21 SA21 SA21 SA25 SA35
Drive Type Electrical / Hydraulic Manual Electric Electrical / Hydraulic Electrical / Hydraulic Electrical / Hydraulic
Davit Type Slewing Rescue Boat and Life Raft Davit
SWL 15 KN 21 KN 21 KN 21 KN 25 KN 35 KN
Hoisting Load 14 KN 14 KN 14 KN 14 KN 14 KN 31 KN
Hoisting Speed ≥18 m/min ≥18 m/min ≥18 m/min ≥18 m/min ≥18 m/min ≥18 m/min
Lowering Speed 40~60 m/min 40~60 m/min 40~60 m/min 40~60 m/min 40~60 m/min 40~60 m/min
Slewing Angle of Electric Power ≤330° / ≤330° ≤330° ≤330° ≤330°
Slewing Angle of Accumulator ≤110° / / ≤110° ≤110° ≤110°
Slewing Radius ≤3.5 m ≤4.5 m ≤4.5 m ≤5.5 m ≤5.5 m ≤5.5 m
Steel Wire Rope (anti-rotation 18×19-14-1770 18×19+FC-16-1770 18×19+FC-16-1770 18×19+FC-16-1770 18×19+FC-16-1770 18×19+FC-18-1770
Allowable Working Inclination Trim 10°, Heel 20° Trim 10°, Heel 20° Trim 10°, Heel 20° Trim 10°, Heel 20° Trim 10°, Heel 20° Trim 10°, Heel 20°
