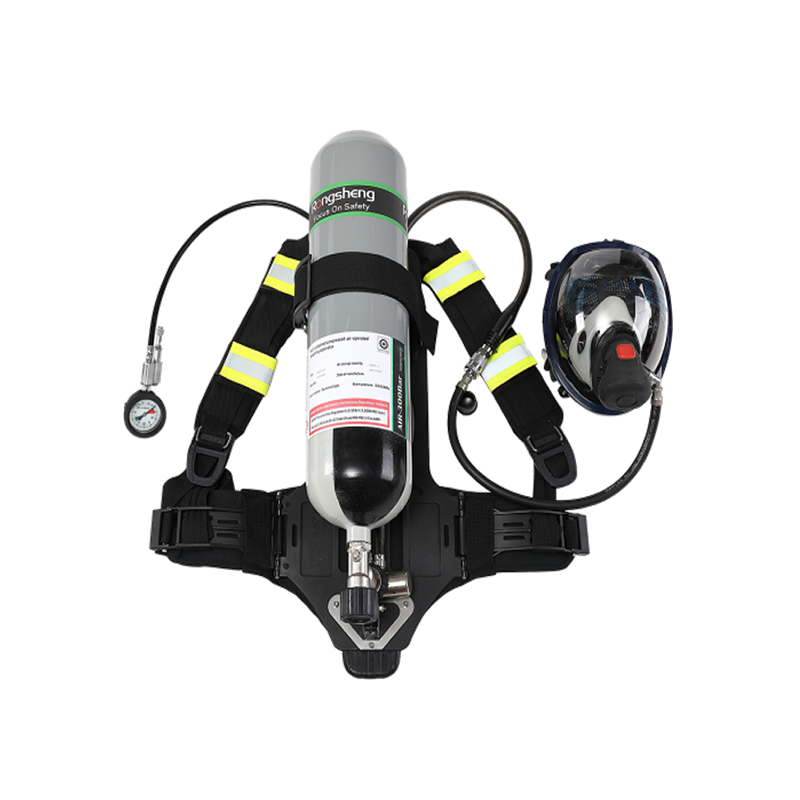

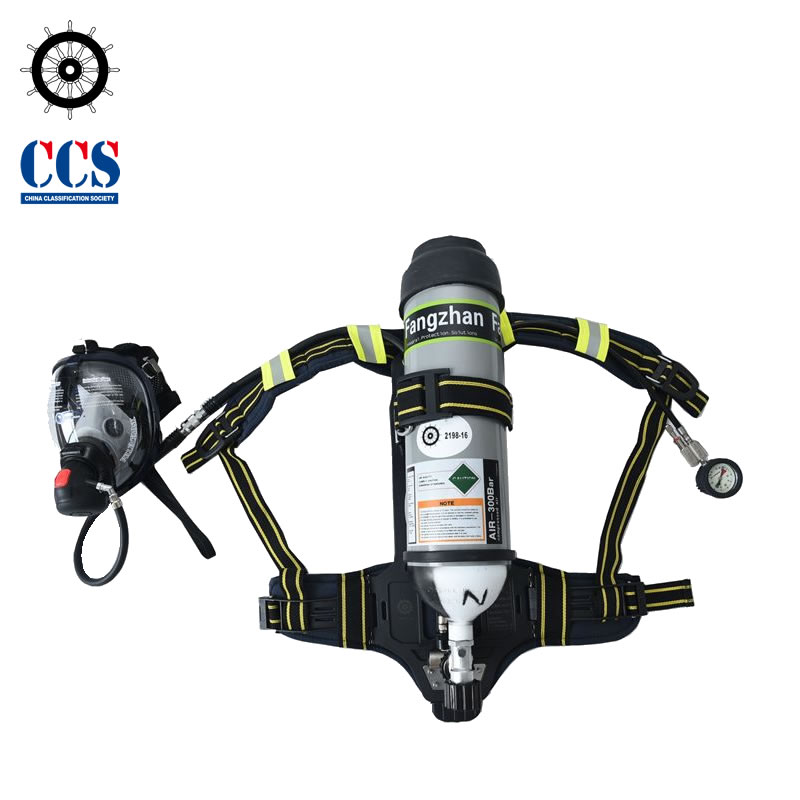

Self Contained Breathing Apparatus 6L
Self Contained Breathing Apparatus known as SCBA,with 6L of positive pressure air at 300bar, is compressed-air-operated breathing apparatus for shipboard fire-fighters(maritime use only).
- Full face mask
- Air demand valve
- Pressure gauge and rest air warning system
- Pressure reducer/regulator
- Back-Frame/backplate
- 6L steel cylinder with head valve

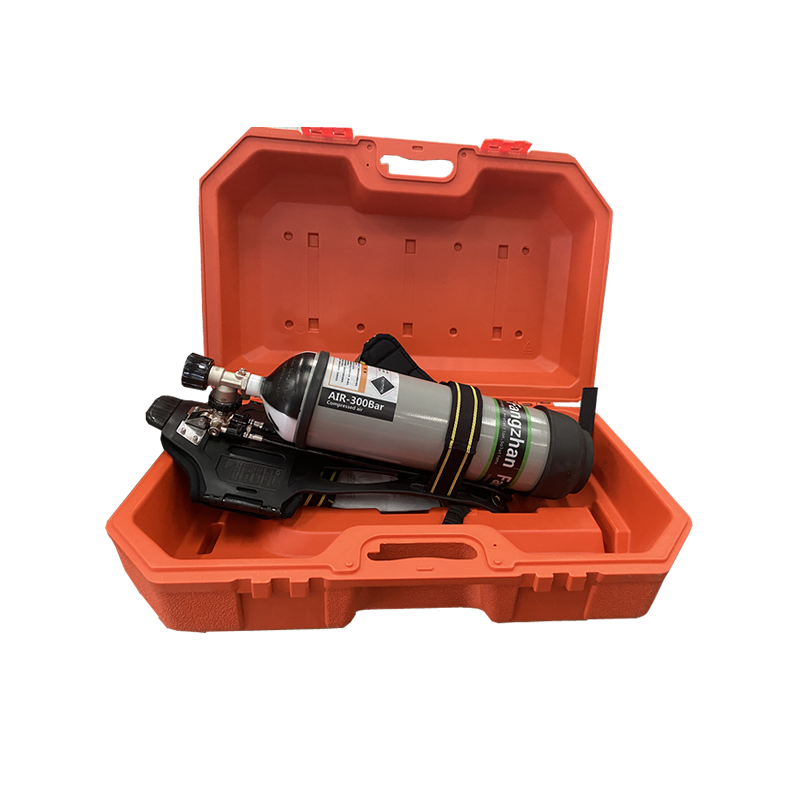

- SCBA carry case
Each SCBA shall be used together with an approved lifeline (complying with the requirements of MED/3.44 and ISO23269-2 Para 4.28.) as part of the fire-fighters outfit according to FSS Code Ch.3.2.1.3.
Description
Introduction:
Self‑Contained Breathing Apparatus 6L (SCBA), normally fitted with steel cylinder at 30 MPa, total air volume 1800L, nominal working time 50‑60 min. It is cost‑effective and widely used as standard marine firefighting equipment.
Comply with:
- Regulation 10,Chaper II-2 of International Convention for The Safety of Life at Sea,1974, as Amended.Chapter 3 of
- International Code for Fire Safety Systems as amended by MSC.339(91).
- MSC.1/Circ.1499 UNIFIED INTERPRETATION OF CHAPTER 3 OF THE FSS CODE
Tests Carried Out:
In accordance with ISO 23269-2:2011, EN 136:1998 including AC:2003 and EN 137:2006.
6L SCBA Specification:
| Model | RHZK6 |
| Max. Working Pressure | 30 Mpa |
| Volume | 6 L |
| Air Deposit | 1800 L |
| Using Time | ≥60 min |
| Weight | ≤18 Kg |
| Working Temp. | -30 ℃ to +60 ℃ |
| Cylinder Material | Steel |
| Pressure Gauge | Mechanical or Digital |
| Certificate | MED or CCS |
