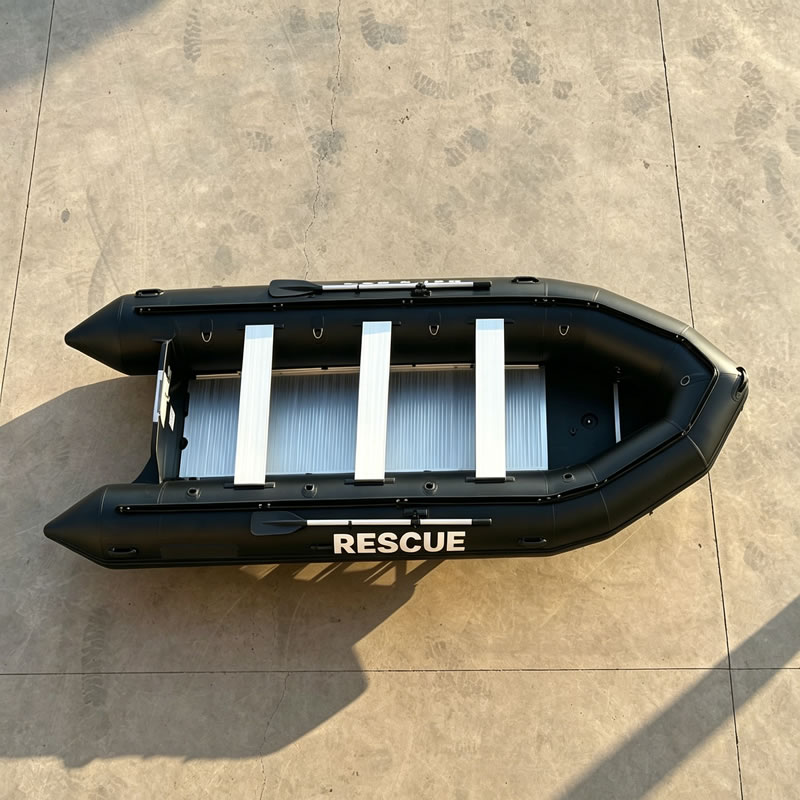

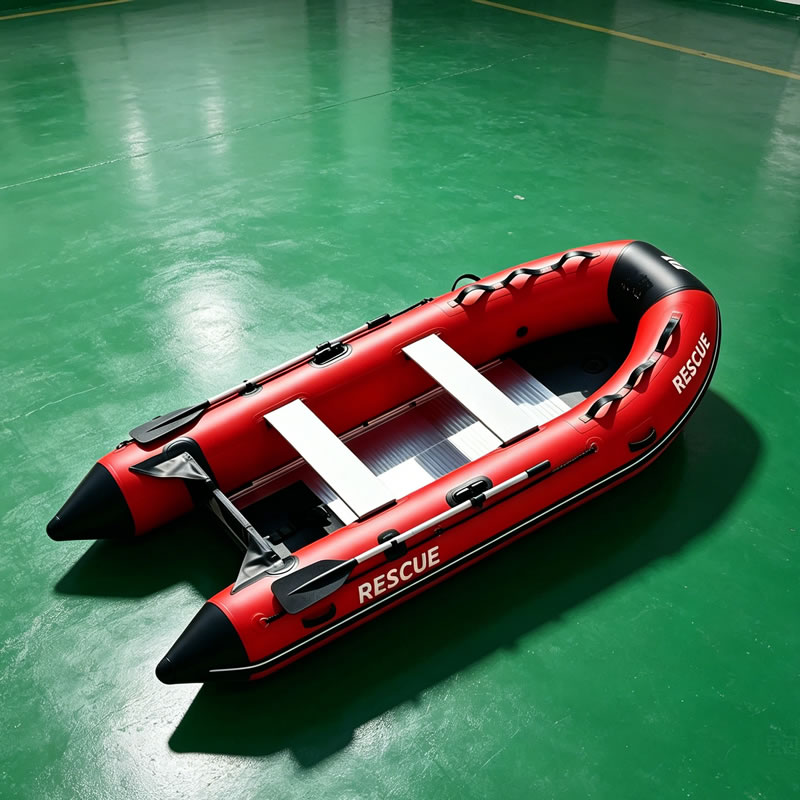

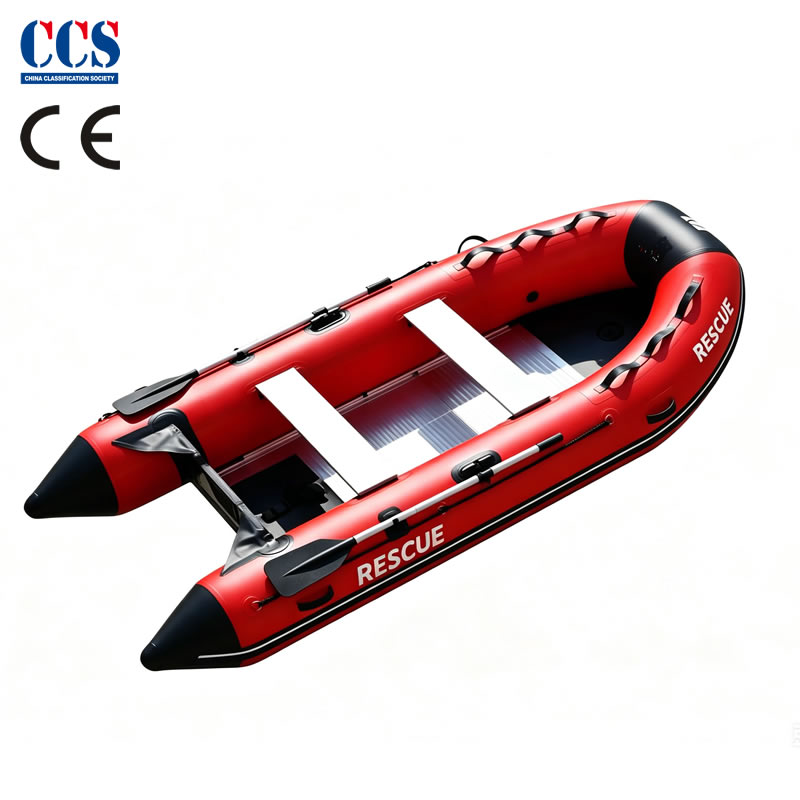

Inflatable Rescue Boats (IRBs)
Inflatable Rescue Boats (IRBs) constructed from heavy-duty PVC or Hypalon airtight fabric, equipped with interchangeable aluminum, roll-up slat or drop-stitch HPP floor.
- Deflatable & foldable
- Light weight and fast deployment
- Inflatable deep V sharped keel
- Boat design category C
Inflatable Rescue Boats (IRBs) are deflatable & foldable for compact transportation and storage, easy manual launching by two rescuers. Inflatable V-keel enables ultra-shallow draft for floodwaters, shoals and inland river rescue.
Description
Introduction:
Inflatable Rescue Boats (IRBs) are portable, quick-deployment craft for lifeguards, military and emergency response teams, designed for swift-water, flood and coastal rescue missions.
- multi-chamber buoyancy design ensures high safety against puncture
- deep-V inflatable keel for enhanced handling and nimble manoeuvring,
- reinforced PVC and Hypalon Tube fabric
- double-sided thermal fusion & high-frequency welding technology boosts the boat’s service life by 40%.
Intended for:
Ideal for flood emergency, inland water patrol and grassroots emergency stock with cost-effective investment.
Specification:
| Model | PR330 | PR360 | PR380 | PR420 | PR470 | PR550 |
| Overall Length | 3.30m | 3.60m | 3.80m | 4.20m | 4.70m | 5.50m |
| Overall Width | 1.50m | 1.76m | 1.76m | 1.86m | 1.86m | 1.90m |
| Inside Length | 2.20m | 2.40m | 2.55m | 2.95m | 3.24m | 4.00m |
| Inside Width | 0.67m | 0.82m | 0.82m | 0.9m | 0.9m | 0.9m |
| Buoyancy Tube Diameter | 0.42m | 0.46m | 0.46m | 0.49m | 0.49m | 0.5m |
| No. of Airtight Compartments | 3+1 | 3+1 | 3+1 | 5+1 | 5+1 | 5+1 |
| Keel | Inflatable deep V-shaped keel | |||||
| Capacity | 4~5 P | 5~6 P | 6~7 P | 8~9 P | 10~12 P | 12~15 P |
| Total Weight of Boat (Excluding floor, oars and OBM) | 58 kgs | 67 kgs | 75 kgs | 105 kgs | 118 kgs | 130 kgs |
| Payload Capacity | 650 kgs | 750kgs | 790 kgs | 850 kgs | 920 kgs | 1200 kgs |
| OBM (Outboard Motor) | 9.8~15 HP | 12~18 HP | 15~30 HP | 30 HP | 30~40 HP | 40~60 HP |
| Tube Material | 0.9/ 1.2mm PVC reinforced fabric or Hypalon/ Orca fabric | |||||
| Floor Type | Rigid/ Roll-up/ HPP floorboards with anodized aluminum stringers | |||||
| Bow Shape | Pointed bow (V-bow) or Wedged bow (T-bow) | |||||
| Transom | Marine grade Plywood/ Aluminum/ HPPE | |||||
| D Rings and Lifelines | Minimum 1 Stainless Steel D-ring at the bow for towing. Minimum 4 internal D-rings for securing cargo/equipment. Heavy-duty grab lines/lifelines on both sides of the buoyancy tube. |
|||||
| Handles and Rubbing Strake | Minimum 4 heavy-duty carrying handles. Heavy-duty rubbing strake/fender profiles around the perimeter for impact protection. |
|||||
| Standard Accessories | 1 Pair of aluminum oars with rowlocks. 1 Foot/bellows inflation pump with pressure gauge. 1 Boat anchor with minimum 30-meter nylon rope. 1 Emergency repair kit |
|||||
