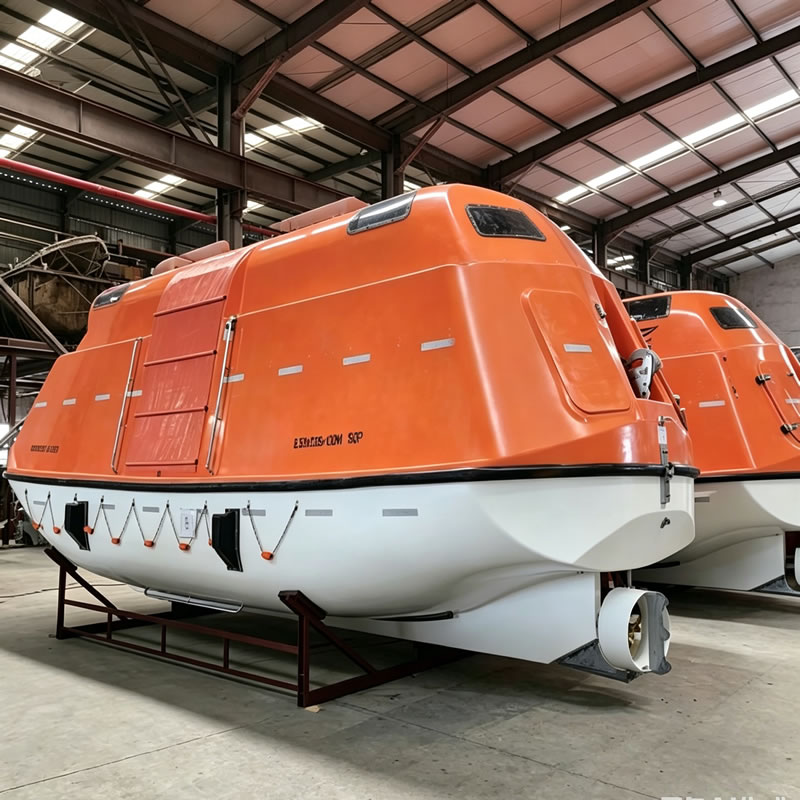

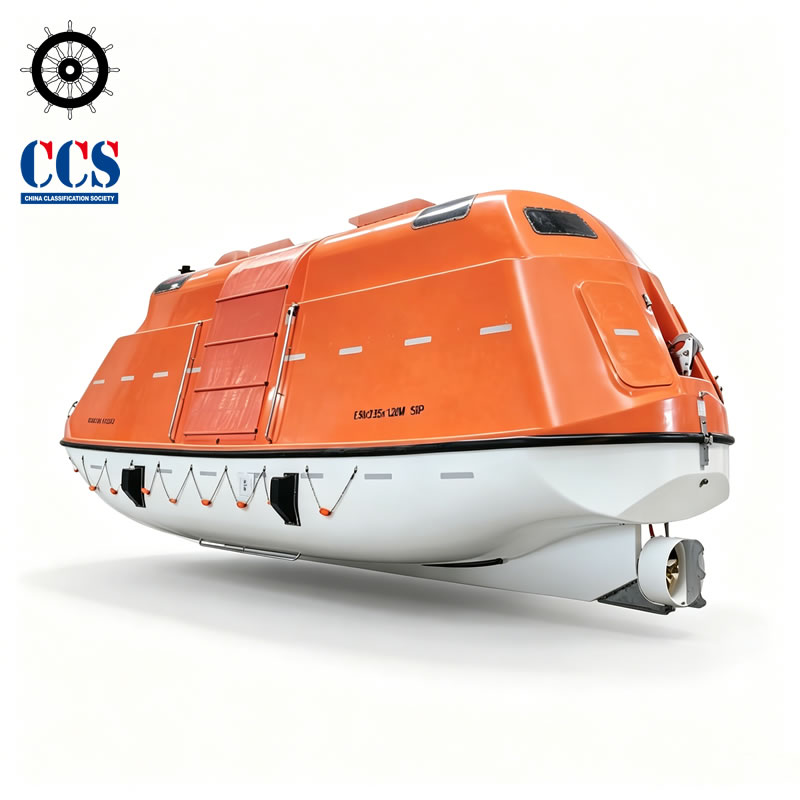

Partially Enclosed Lifeboats
Partially Enclosed Lifeboats are designed for moderate climate, coastal & sheltered sea areas, primarily fitted on cruise ships, short-sea ferries and coastal passenger vessels, suitable for short-term survival.
- Capacity from 51 Pers to 150 Pers
- Length from 7.0m to 9.6m
- Folding canvas canopy
- MED or CCS Certificate
Partially Enclosed Lifeboats, complying with the requirements of SOLAS Chapter III and the IMO LSA Code, are permitted to be recovered, hoisted and re-stowed onboard vessels by gravity luffing arm davit systems.
Description
Introduction:
IMO rules stipulate partially enclosed lifeboats shall feature rigid covers covering ≥20% of the bow and stern, foldable full-enclosure weatherproof canopies, automatic self-bailing functionality, and access doors at the bow, stern and both lateral sides.
Comply with:
- Regulations 21, 31 and 34, Chapter III of International Convention for the Safety of Life at Sea, 1974, as Amended
- Chapter IV of MSC.48(66) International Life-saving Appliance Code, as amended by MSC.218(82), MSC.272(85), MSC.320(89), MSC.459(101) and MSC.485(103)
- Part 1 of MSC.81(70) Revised Recommendation on Testing of Life-saving Appliance, as amended by MSC.226(82), MSC.274(85), MSC.321(89), MSC.323(89) and MSC.488(103)
Test Carried Out:
in accordance with recommendation on testing of Lifesaving Appliances, IMO Res. MSC.81(70) part 1, as amended by IMO Res. MSC.226(82), IMO Res. MSC.274(85), IMO Res. MSC.321(89), IMO Res. MSC.323(89), IMO MSC.1/Circ. 1006 and IMO Res. MSC.481(102) – Type II.
Specification:
| Model | Dimension | Capacity | Hook Distance | Total Height | Total Weight |
| JY70P | 7.00×2.70×1.10 m | 51 Pers | 6.60 m | 3.10 m | 6628 kgs |
| JY80P | 8.00×2.80×1.20 m | 71 Pers | 7.60 m | 3.10 m | 8400 kgs |
| JY85P | 8.50×3.15×1.20 m | 82 Pers | 8.10 m | 3.10 m | 10120 kgs |
| JY88P | 8.80×4.26×1.45 m | 150 Pers | 8.45 m | 3.35 m | 16800 kgs |
| JY93P | 9.30×3.45×1.20 m | 105 Pers | 8.90 m | 3.10 m | 12850 kgs |
| JY96P | 9.60×4.20×1.45 m | 150 Pers | 9.20 m | 3.35 m | 16800 kgs |
