Barbed Wire

Barbed Wire is a common, low-cost anti-piracy goods used on ships, classical types are razor wire, flat wrap razor wire and standard barbed wire.

  • Razor barbed wire and standard barbed wire available
  • Material available with SUS and galvanized iron
  • High-tensile, durability and seawater corrosive

Barbed wire are installed along the ship’s perimeter, railings, and gangway openings to prevent unauthorized boarding, is a key element in mandatory Ship Security Plans (SSP) under the ISPS Code (International Ship and Port Facility Security Code) for ships operating in high-risk areas.

Categories: ,

Description

Introduction:

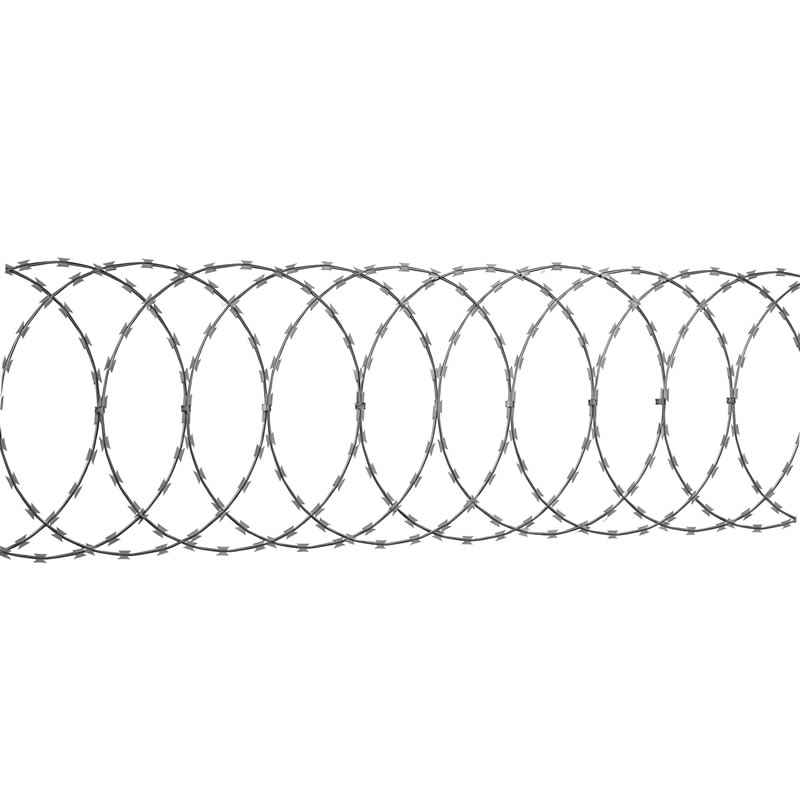

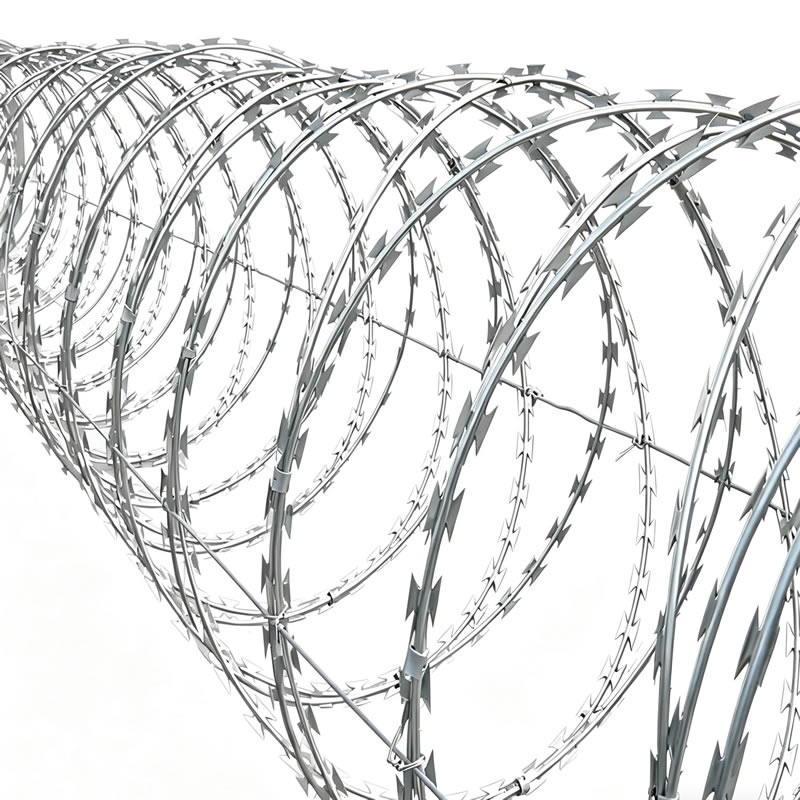

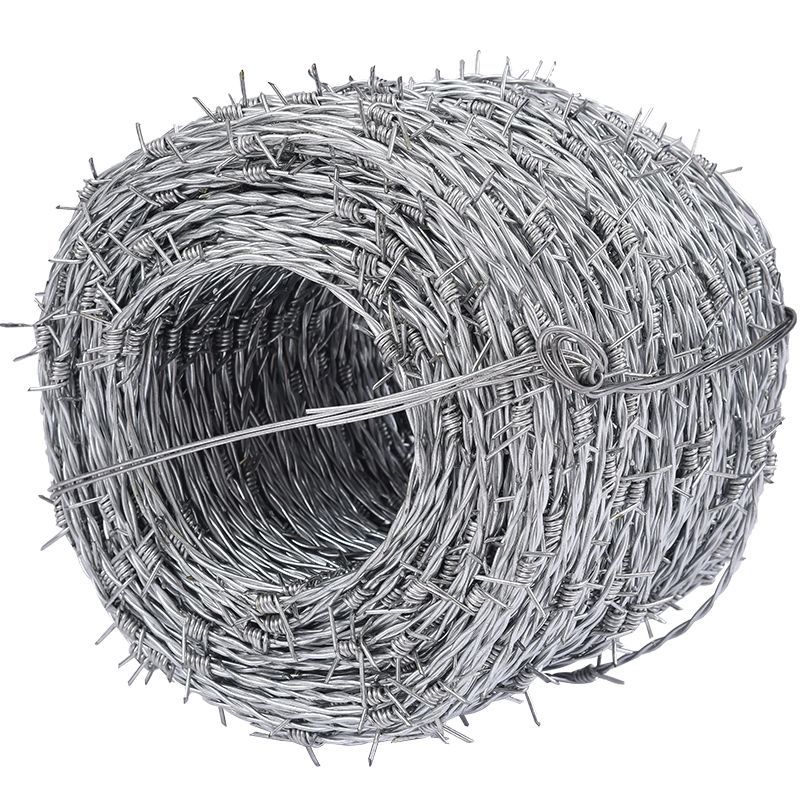

Razor wire is a concertina configured galvanized steel wire or SUS wire used for outer boundary fencing on ship’s deck to defend ships from the vandals, like pirates. A flap wrap razor wire is a flat construction, suitable for installations where a neat apprarance is required. Standard barbed wire with sharp edges to protect your property from invaders by fencing around.

Application:

In high-risk areas like the Gulf of Aden, the Indian Ocean, and the Gulf of Guinea.

Barbed Wire Specification:

Type Razor Wire Flat Wrap Razor Wire Standard Barbed Wire
Material Galvanized Steel or SUS Galvanized Steel or SUS Galvanized Steel or SUS
Wire Gauge 2.5mm 2.5mm 2.5mm
Barb Length 10-30mm 10-30mm 15-60mm
Barb Distance 26-54mm 26-54mm 75-150mm
Loop Diameter 400-900mm 500-700mm Any
Standard Length 15m 10m 250m
IMPA Code 671201-671216 671231-671232 671225
