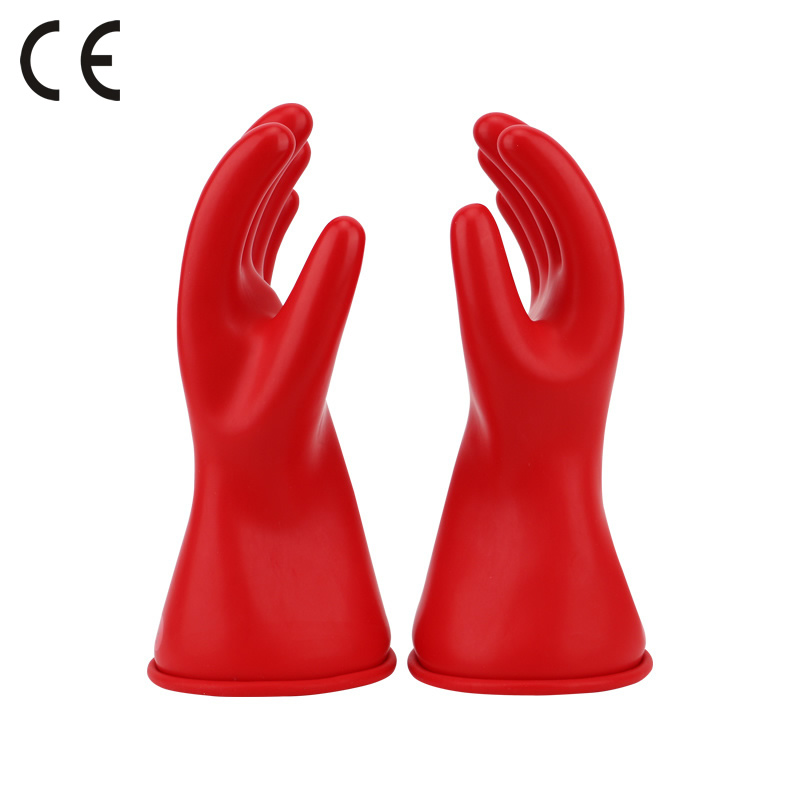

Class 00 Electrical Insulation Glove 500V

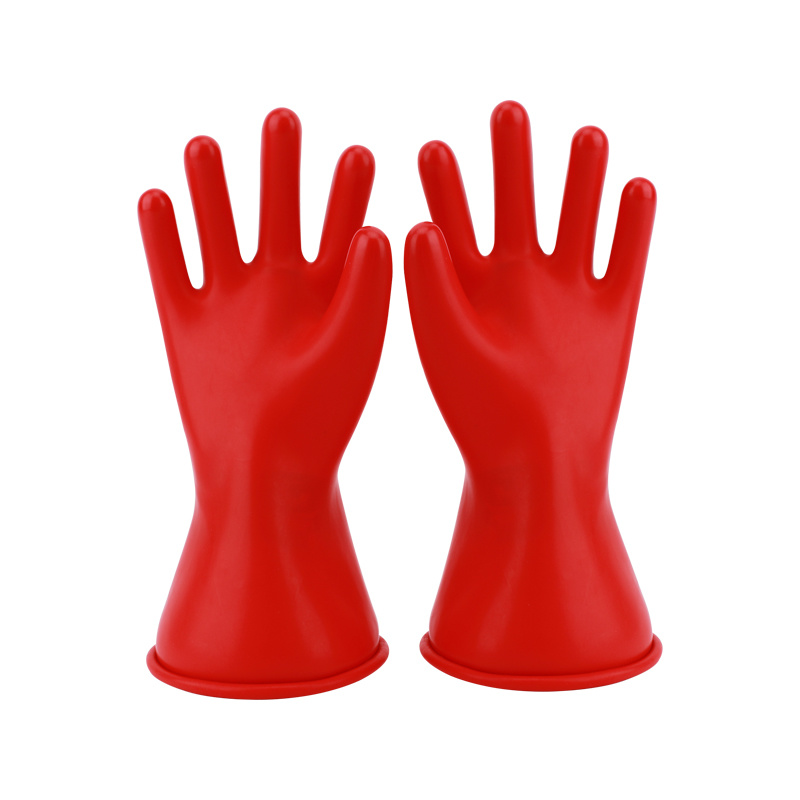

Class 0 Dielectric gloves 1000V

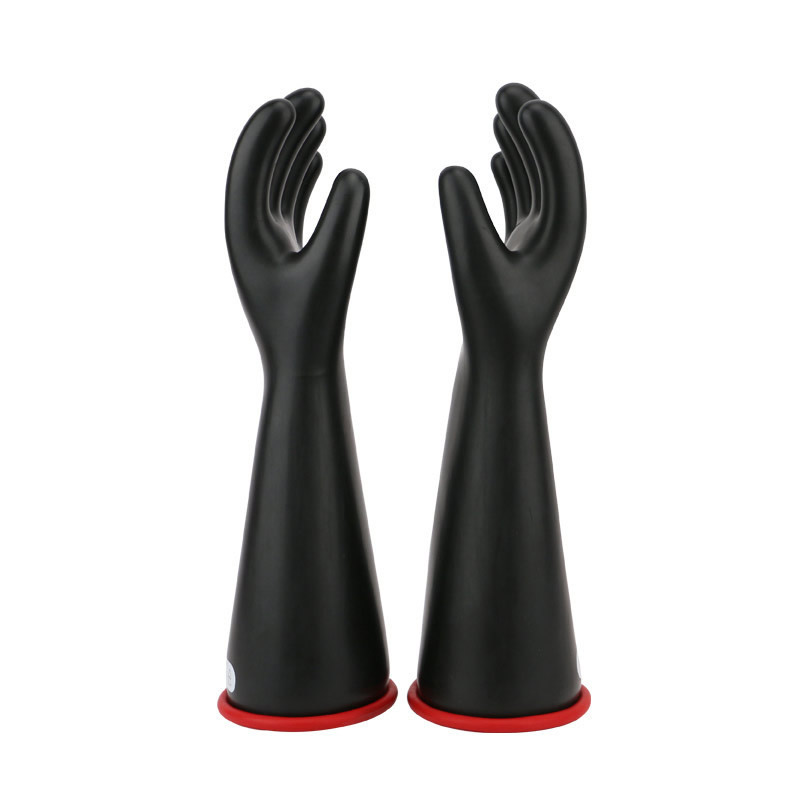

Class 1 Electrician's Glove 7500V

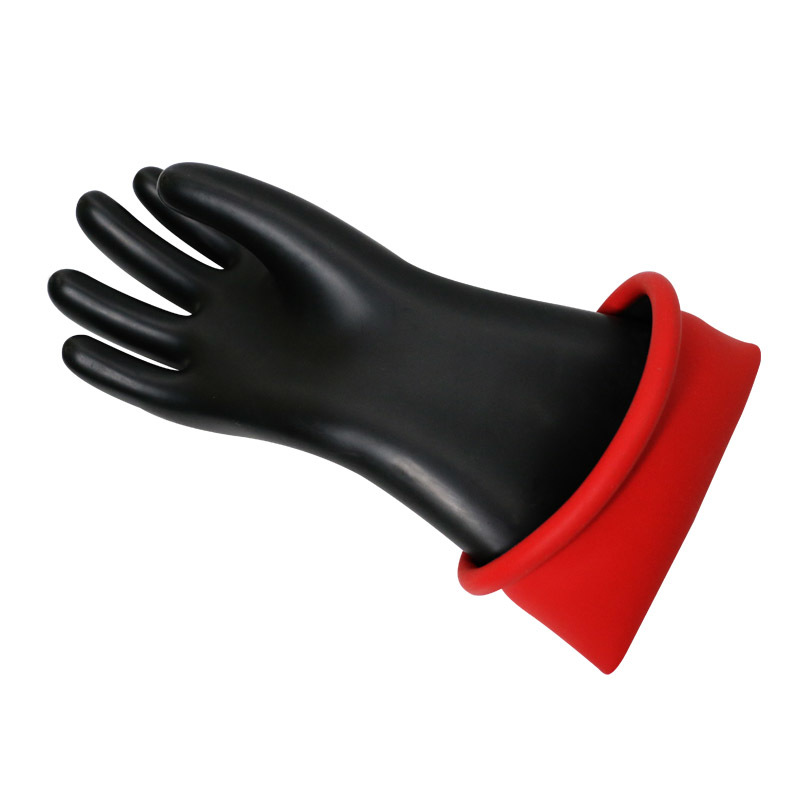

Class 2 electric insulated gloves 17000V
Class 00 Electrical Insulation Glove 500V
Class 0 Dielectric gloves 1000V
Class 1 Electrician's Glove 7500V
Class 2 electric insulated gloves 17000V
In Stock

Electrical Insulation Rubber Gloves

Electrical Insulation Rubber Gloves are critical PPE used on ships, typically range from Class 00 (up to 500V AC) to Class 2 (up to 17,500V AC), depending on the voltage of the equipment being maintained on board.

  • From Class 00 to Class 2
  • Natural latex or rubber
  • Comply with EN 60903 standards

Electrical Insulation Rubber Gloves are designed with high dielectric strength to protect crew members from electric shocks during high-voltage maintenance, these rubber insulating gloves must be used with leather protectors and inspected before each use.

Categories: ,

Description

Introduction:

Electrical Insulation Rubber Gloves are typically categorized 6 classes by voltage capacity, from class 00 (500V AC) to class 4 (36000V AC),  and must comply with international standards for dielectric strength, mechanical properties, and ozone resistance under EN60903/IEC60903 standards, with common IMPA codes 795531 and 795532.

Application on Board:

  • Class 00 (Max 500V AC): Low voltage maintenance, such as small electronics or electrical control circuits. Often red.
  • Class 0 (Max 1,000V AC): General shipboard electrical maintenance (common lighting/power panels).
  • Class 1 (Max 7,500V AC): High-voltage electrical work, such as high-voltage switchboards or medium voltage equipment maintenance.

Electrical Insulation Rubber Gloves Specification:

Class Max. Working Voltage Tested Verification Voltage Max. Leakage Current Voltage Withstand Time Size Material
AC AC
00 500 V 2.5 KV ≤ 12A 3 min 11 and 14 inch (#8/#9/#10/#11) Natural latex or rubber
0 1000 V 5 KV ≤ 12A 3 min 11 and 14 inch (#8/#9/#10/#11) Natural latex or rubber
1 7500 V 10 KV ≤ 16A 3 min 14/16/18 inch (#8/#9/#10/#11) Natural latex or rubber
2 17500 V 20 KV ≤ 18A 3 min 14/16/18 inch (#8/#9/#10/#11) Natural latex or rubber
