SOLAS requirements for totally enclosed lifeboats
By marinesafety
0 Comments
"Your safety is our responsibility - choose top marine safety equipment from here."

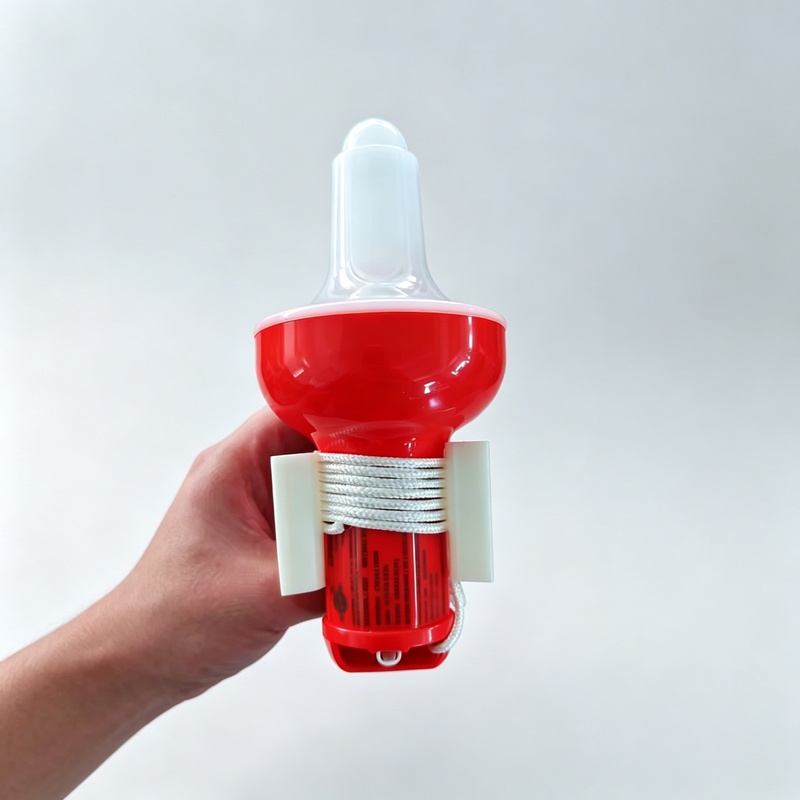

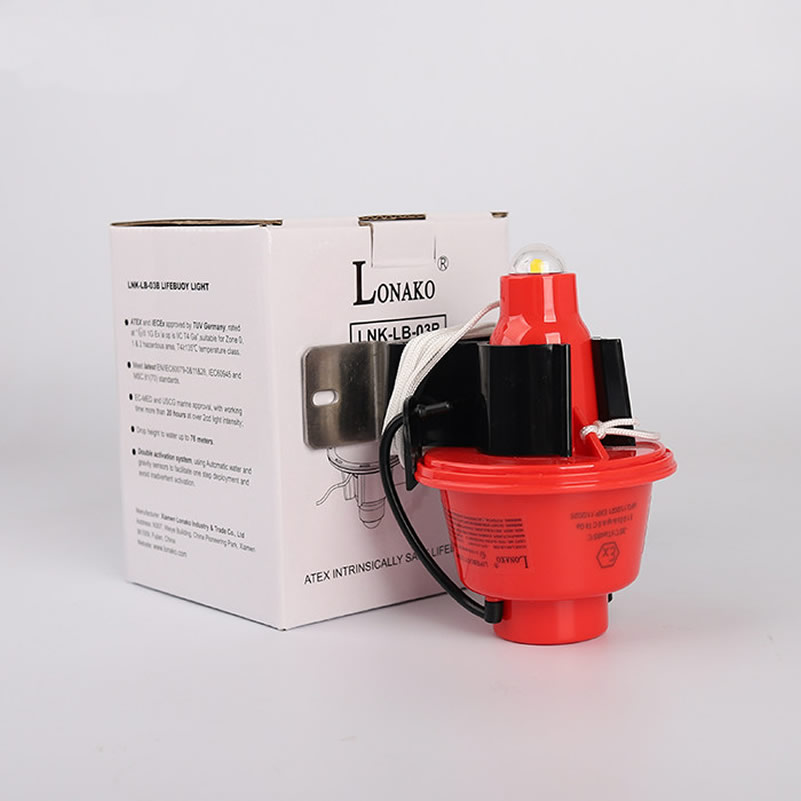

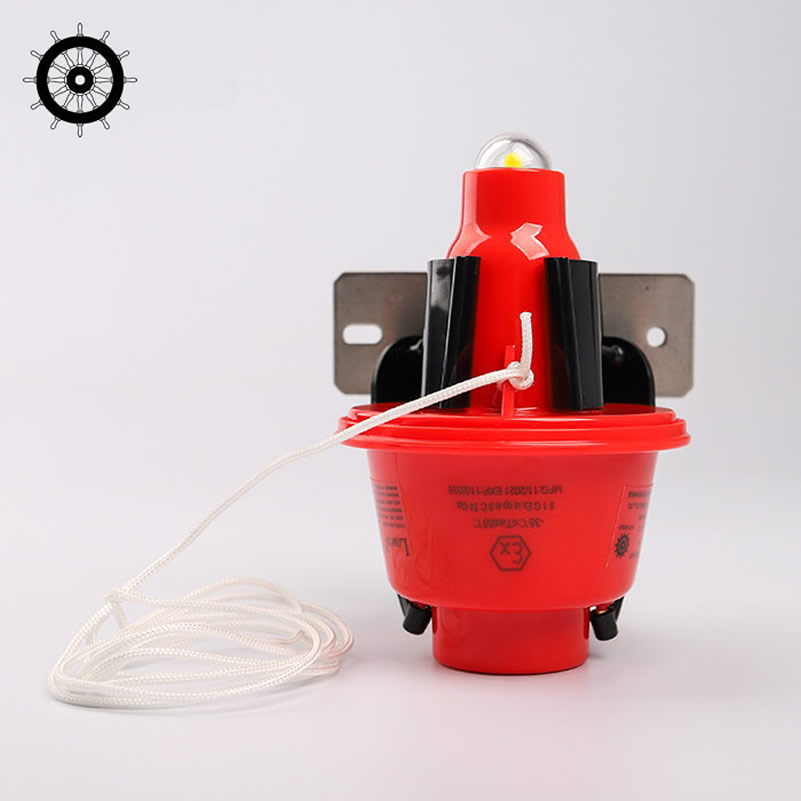

Ex-proof Lifebuoy Light
Ex-proof Lifebuoy Light is a SOLAS‑compliant and Intrinsically‑Safe position indicating lights for life-saving appliances: for lifebuoys.
- ATEX and ICE-Ex approved
- ATEX category: 1G
- Battery: Lithium battery
- Validity: 5 years
- MED or USCG approval
Ex‑proof lifebuoy light is mandatory for tankers, gas carriers, offshore facilities, flammable‑cargo barges and open‑deck survival stations in hazardous Zones 0‑2, while non‑explosion‑proof lifebuoy lights are restricted to safe‑area decks.
Description
Introduction:
Ex‑proof lifebuoy light shall meet the requirements of the International Convention for the Safety of Life at Sea (SOLAS), in addition to complying with stringent intrinsic‑safety certification requirements for hazardous environments onboard oil tankers, offshore rigs and similar installations.
Comply with:
1. Regulations 4,7,22,26,32 and 34, Chapter III of International Convention for the Safety of Life at Sea, 1974,as Amended
2. Chapter I and II of MSC.48(66) International Life-saving Appliance Code,as amended by MSC.207(81)
3. Sections 10 of Parts 1 of MSC.81(70) Revised Recommendation on Testing of Life-saving Appliances,as amended by MSC.200(80),MSC.226(82),MSC.323(89)
Tests carried out:
— IMO Res. MSC.81(70), as amended,
— EN 60945:2002 incl. IEC 60945 Corr. 1:2008,
— ISO 24408: 2005.
Specification:
| Model | LNK-LB-03B | RSQD-EX |
| Power Source | Lithium Battery | Lithium Battery |
| Validity | 5 Years | 5 Years |
| Bulb | LED | LED |
| Activation | Automatic (water sensor) | Automatic (water sensor) |
| Body Material | Polycarbonate | Polycarbonate |
| Luminous Intensity | ≥2.0cd | ≥2.0 cd |
| Lighting Duration | ≥2 h | ≥2 h |
| Frequency of Flash | 50 to 70 flashes per minute | 50 to 70 flashes per minute |
| Max. Drop Height | 76 m | 45m |
| Storing Temperature | -30°C ~ +65°C | -30°C ~ +65°C |
| Working Temperature | -1°C ~ +30°C | -1°C ~ +65°C |
| Dimension | ⌀90×133 mm | 188×122×100 mm |
| EX Approval | ATEX and IEC-Ex | CNEX |
| ATEX Category: | EX II 1G Ex ia op is IIC T4 Ga Zone 0‑2 |
Ex ib IIB T4 Gb Zone 1‑2 |
| Approval | MED or USCG | MED or CCS |
