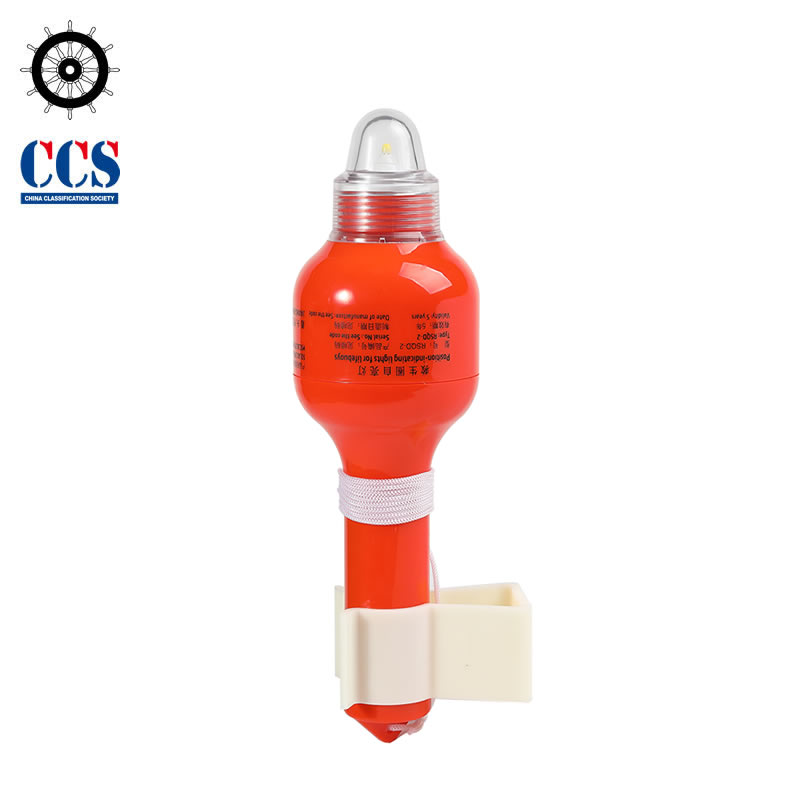

Lifebuoy Lights
Lifebuoy Lights are essential marine safety equipment fitted to lifebuoys on board ships, fully complying with the requirements of SOLAS with MED approved.
- Activate automatically (tilts witch and water flow switch)
- Lithium battery or Alkaline battery power sources
- LED bulb
- MED or CCS certificate
Lifebuoy lights complying with SOLAS requirements shall be automatically activated when dropped into water, and provide a white light output of minimum 2 candelas over a continuous period of not less than 2 hours.
Description
Introduction:
Lifebuoy lights are positon indicating lights, shall be installed on brackets or clips adjacent to lifebuoys fitted on ship structures or deck railings to ensure automatic release when the lifebuoy is thrown overboard.
Comply with:
1. Regulations 4,7,22,26,32 and 34, Chapter III of International Convention for the Safety of Life at Sea, 1974,as Amended
2. Chapter I and II of MSC.48(66) International Life-saving Appliance Code,as amended by MSC.207(81)
3. Sections 10 of Parts 1 of MSC.81(70) Revised Recommendation on Testing of Life-saving Appliances,as amended by MSC.200(80),MSC.226(82),MSC.323(89)
Tests carried out:
— IMO Res. MSC.81(70), as amended,
— EN 60945:2002 incl. IEC 60945 Corr. 1:2008,
— ISO 24408: 2005.
Specification:

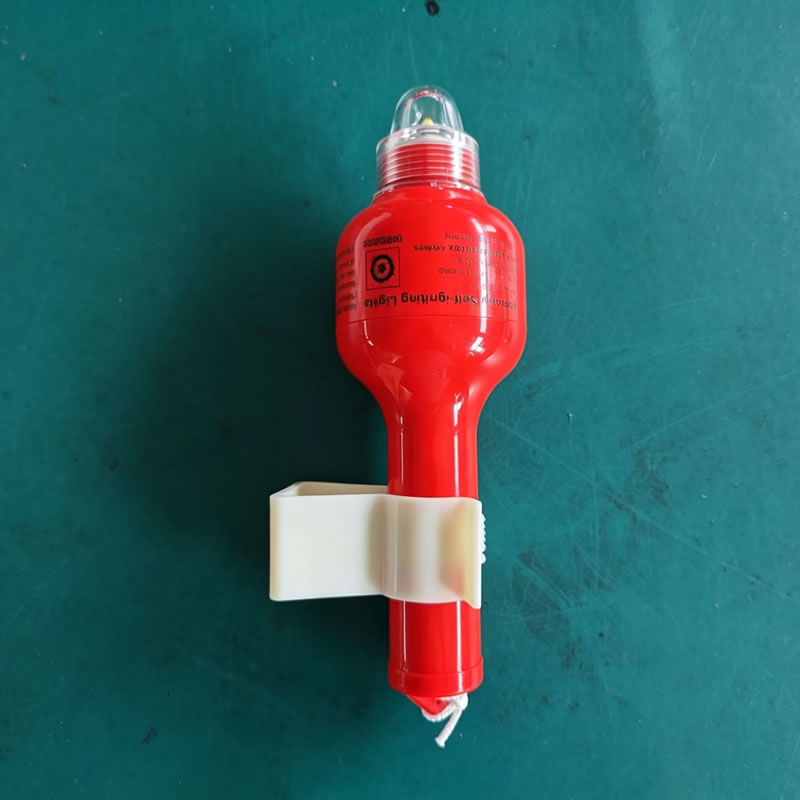

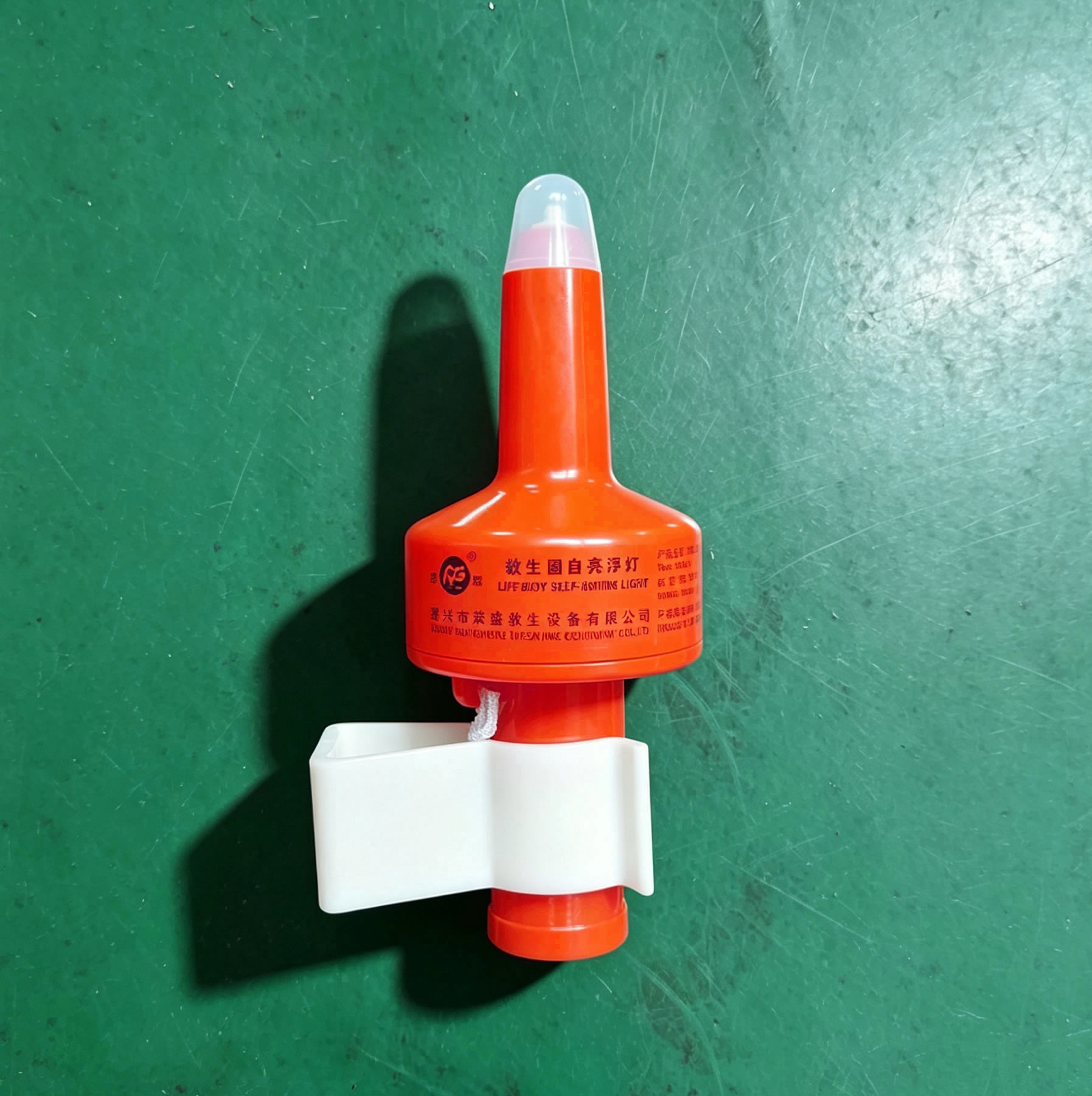

| Model | RSQD-1 | RSQD-2 |
| Power Source | Lithium Battery | Alkaline Battery |
| Validity | 5 Years | Upon alkaline battery lifespan |
| Bulb | LED | LED |
| Activation | Automatic (water flow switch) | Automatic (tilt switch) |
| Body Material | Polycarbonate | Polycarbonate |
| Luminous Intensity | ≥2.0cd | ≥2.0 cd |
| Lighting Duration | ≥2 h | ≥2 h |
| Frequency of Flash | 50 to 70 flashes per minute | 50 to 70 flashes per minute |
| Max. Drop Height | 30 m | 30m |
| Dimension | 235×110×83 mm | 115×92×352 mm |
| Approval | MED or CCS | MED or CCS |
