Personnel Transfer Basket (Collapsible)

Personnel Transfer Basket collapsible type a classical safety device to transfer crew members,  mainly used on container ships and cargo ships.

  • Collapsible net type
  • Maximum capacity 12 persons
  • Corrosion-resistant material

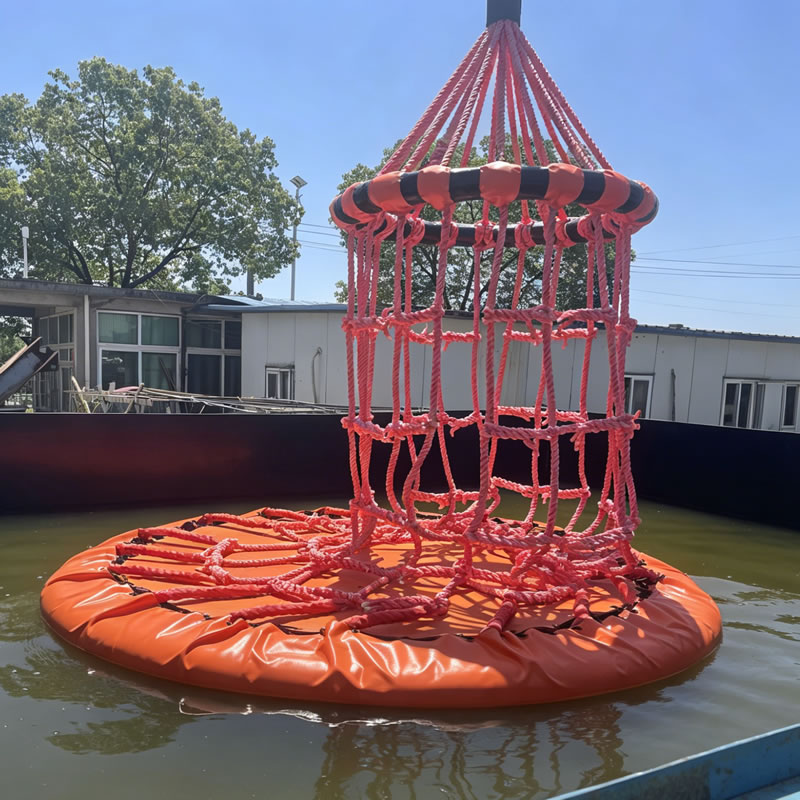

  • Floating Capability
  • CCS/ABS/BV/DNV approval

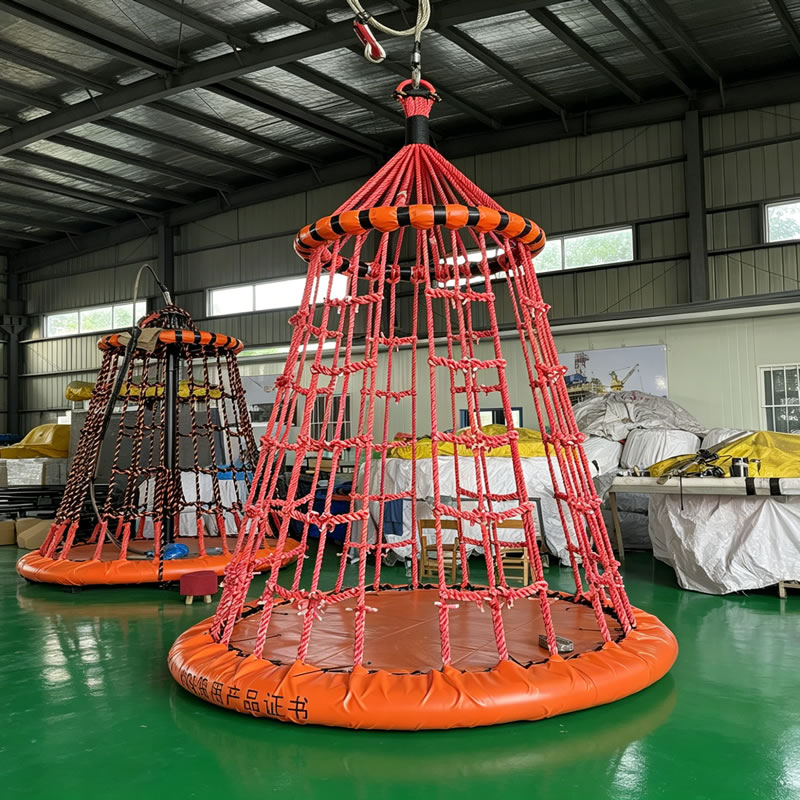

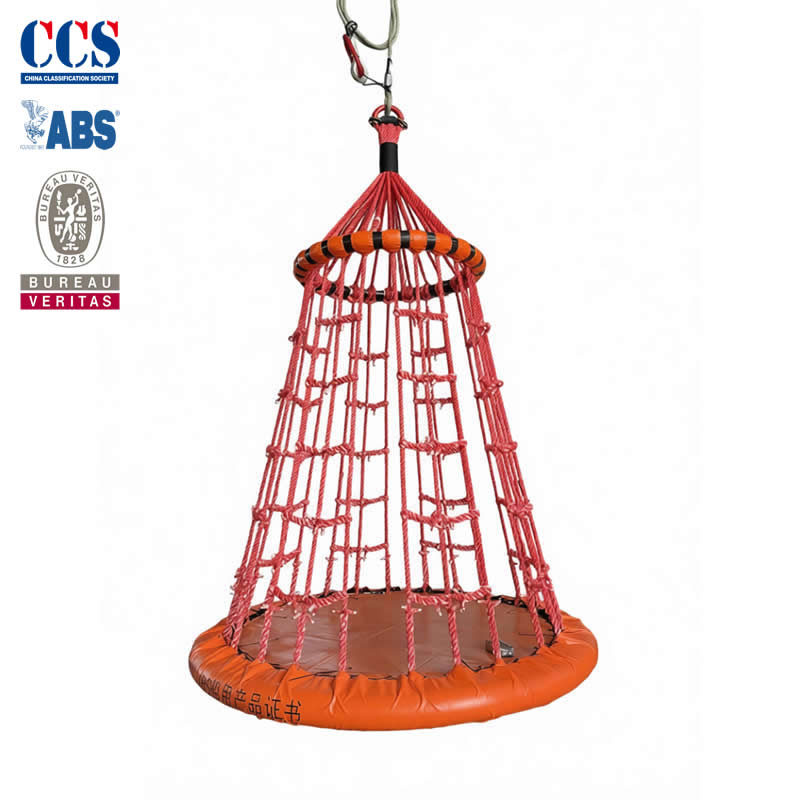

Collapsible personnel transfer basket, commonly known as Billy Pugh basket, this basket consists of a sturdy upper ring and a solid lower ring that typically provides buoyancy, connected by a flexible polyester woven rope net. Hanging ring is also installed at the top of the basket.

Description

Comply with:

  1. EN 14502-1 Cranes – Equipment for the lifting of persons – Part 1: Suspended Baskets
  2. ISO/WD 25936 – Collapsible Personnel Transfer Baskets
  3. China Classification Society Rules for Lifting Appliances of Ships and Offshore Installations
  4. China Classification Society Guidelines for Survey of Marine Hanging Baskets 2023.

Intended for:

For the safe and rapid aerial transport of crew members between offshore installations, drilling rigs, and vessels via a crane.

Personnel Transfer Basket (Collapsible) Specification:

Model X-871-4 X-871-6 X-871-8 X-871-10 X-871-12
Capacity 4 Persons 6 Persons 8 Persons 10 Persons 12 Persons
Safety Load 490 Kgs 735 Kgs 980 Kgs 1225 Kgs 1470 Kgs
Lift Test Load 980 Kgs 1470 Kgs 1960 Kgs 2450 Kgs 2940 Kgs
Base Size (Diameter) 1.8m 2.1m 2.4m 2.4m 2.7m
Height 3.5 m 3.5m 3.5m 3.5m 3.5m
Weight 140 Kgs 165 Kgs 180 Kgs 185 Kgs 200 Kgs
Rope Net Material Polyester Polyester Polyester Polyester Polyester
Rope Size 20 mm 20 mm 20 mm 20 mm 20 mm
Wire Rope Size 22 mm 22 mm 22 mm 22 mm 22 mm
Wire Rope Structure 6×36WS+IWR 6×36WS+IWR 6×36WS+IWR 6×36WS+IWR 6×36WS+IWR
Wire Rope Length 4/5.5/6.7 m 6.7 m 6.7 m 6.7 m 6.7 m
Approval CCS, BV, ABS, LR, DNV
