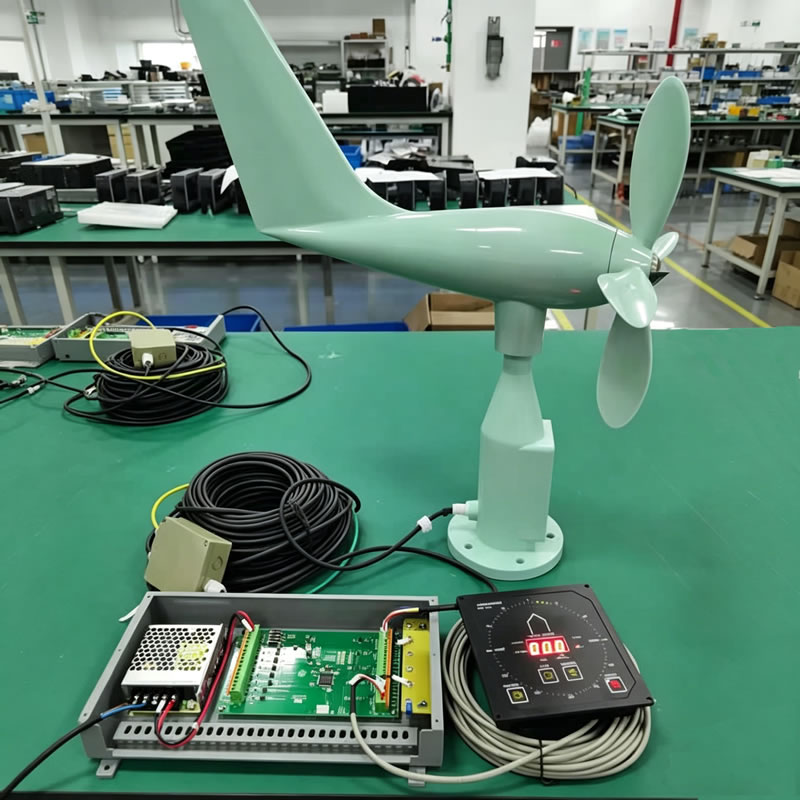

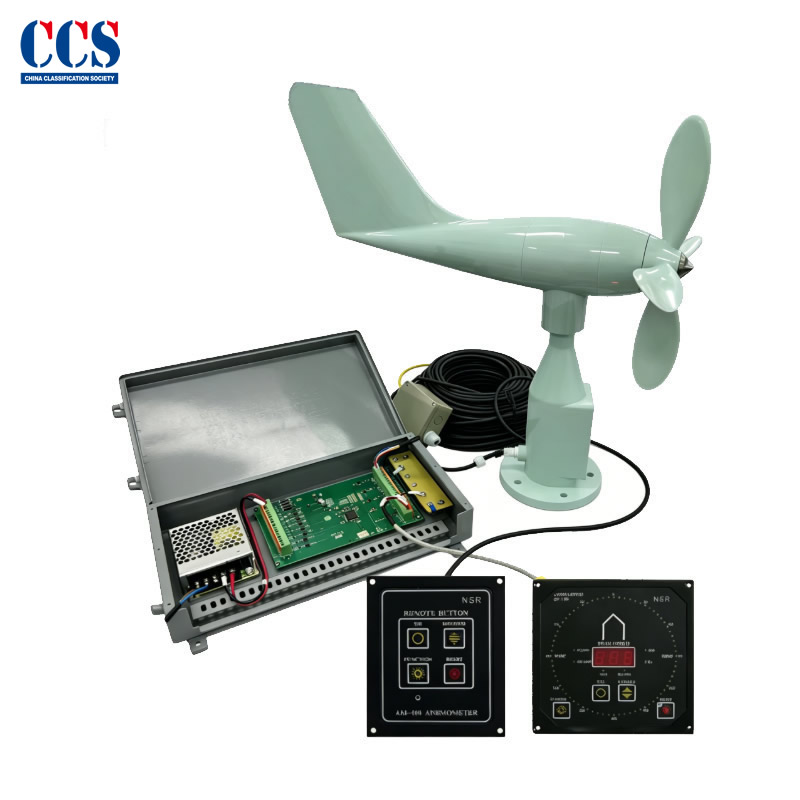

Anemometer (NSR)
Anemometer from NSR with model AM-100 is a propeller and vane type marine digital anemometer comply with ISO10596 and approved by CCS.
- IP66 anemometer transmitter
- Up to 4 display units and 6 data output
- True wind speed and direction available
- CCS type approval
The AM-100 anemometer is designed for measuring wind direction and velocity (0–60 m/s) on vessels. It is a fixed, heavy-duty propeller-type vane anemometer with an external transmitter unit and an indoor digital display.
Description
Comply with:
- IMO Resolution A.694(17) General Requirements for Shipborne Radio Equipment Forming Part of the Global Maritime Distress and Safety System (GMDSS) and for Electronic Navigational Aids
- IMO Resolution MSC.191(79) Performance Standards for the Presentation of Navigation-Related Information on Shipborne Navigational Displays
- IEC 60945:2002/COR1:2008 Maritime Navigation and Radiocommunication Equipment and Systems –General Requirements – Methods of Testing and Required Test Results
- ISO 10596:2009 specifies the type, structure, function, performance and testing method of marine wind vane and anemometers
Application:
Ships and offshore platforms for navigation, safe docking, route optimization, crane operation, and wind resource assessment.
Anemometer Specification:
| Model | AM-100 |
| Parts List | – Anemometer Transmitter (AM-100T)
– Display Unit (AM-100D) – Junction Box (AM-100J) – Watertight Box (AM-100TJ) – Accessories |
| Wind Range | Wind direction 0～360°
Wind velocity 0～60 m/s |
| Accuracy: | Wind direction ±5°
Wind velocity ±(0.5+ V×5%) m/s |
| Power Supply | AC 100 V ~ 240 V |
| Input Signal | Gyro Compass, NMEA 0183, RS422Speed Log, NEMA 0183, RS422 |
| Output Data | NMEA 0183 (6 ports, RS422), 4800 bps |
| Display Capacity | Max 4 Display Units to be connected |
| Environment | Outdoor: -30℃～+70℃ Indoor: -15℃～+55℃ |
| Transmitter Size | 627 (H)×605 (L)×243 (propeller diameter) mm |
| IP Grade | IP22 (Display Unit, Junction Box, Remote Button)
IP66 (Transmitter, Watertight Box) |
| Transmitter Weight | 4.3 kg |
| Option | Remote Button and Additional Display Unit |
| Approval | CCS |
