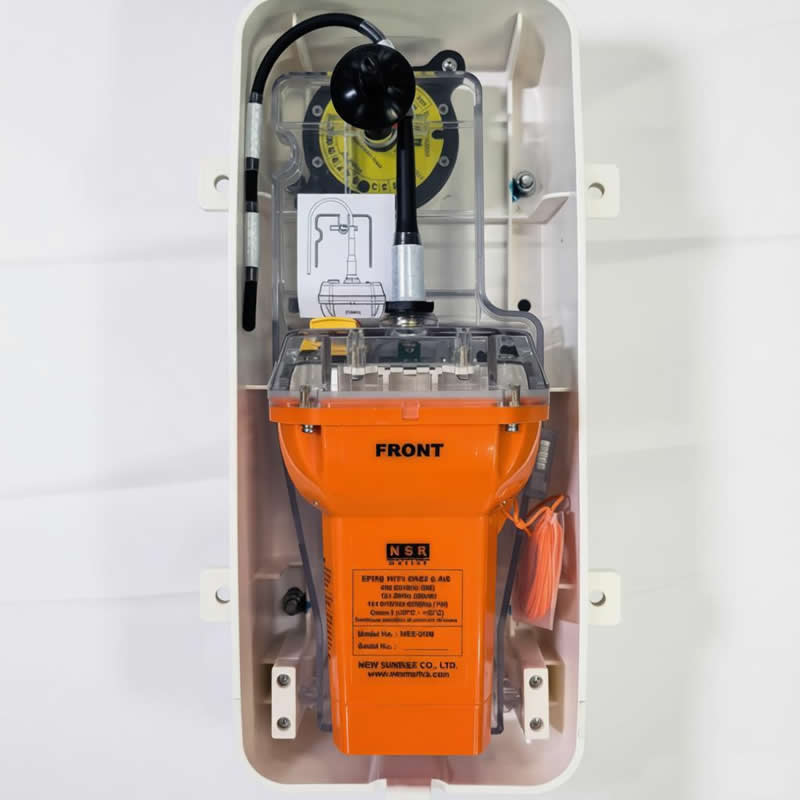

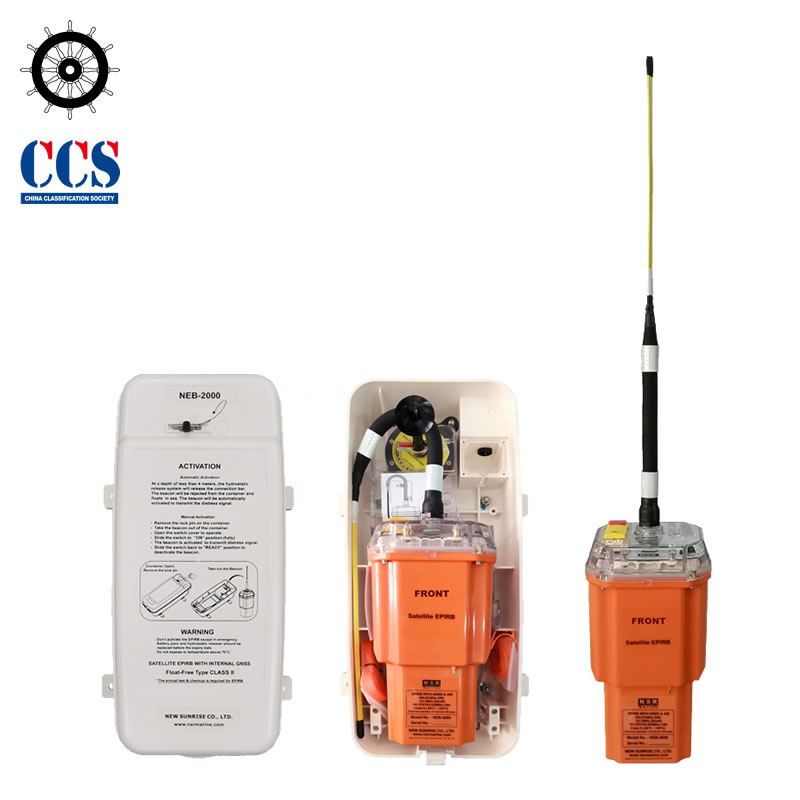

AIS EPIRB (NSR)
AIS EPIRB from NSR with model NEB-2000 and NEB-3000 are Class II 406 MHz EPIRBs approved by COSPAS-SARSAT and comply with IMO MSC.471.
- 406 MHz signal to Cospas-Sarsat satellites
- 121.5 MHz for homing
- Built in GNSS receiver and AIS transmitter
- Automatic release device is activated underwater 4 meters
- MED and CCS approval
Commercial vessels carry float-free 406 MHz EPIRBs (Emergency Position Indicating Radio Beacons) as part of the Global Maritime Distress and Safety System (GMDSS) to signal distress via satellite. New requirements (MSC.471(101)) for units installed on/after July 1, 2022, include mandatory GNSS (GPS) and AIS capabilities for faster localized rescue.
Description
Comply with:
- IMO Resolution A.694(17) General Requirements for Shipborne Radio Equipment Forming Part of the Global Maritime Distress and Safety System (GMDSS) and for Electronic Navigational Aids
- IMO Resolution MSC.471(101): Performance Standards for Float-Free Satellite Emergency Position-Indicating Radio Beacons (EPIRBs) Operating on 406 MHz
- SOLAS 74 as amended, Regulations IV/ 7, IV/14 & X/ 3
Tests Carried Out:
- Environmental testing: IEC 60945 (2002) incl. Corr.1 (2008)
- Performance testing: IEC 61097-2 (2021)
AIS EPIRB Specification:
| Model | NEB-2000 | NEB-3000 |
| Return Link Service (RLS) | Exclude | Include |
| 406 MHz Transmitter | ||
| Frequency: | 406.031MHz±1kHz | |
| Output Power | 5W | |
| 121.5 MHz Homer | ||
| Frequency: | 121.5MHz | |
| Output Power | 50mW | |
| AIS Transmitter | ||
| Frequency: | AIS1 (161.975 MHz), AIS2 (162.025 MHz) | |
| Output Power | 1 W | |
| GNSS Receiver | ||
| Type | Built-in GNSS antenna | |
| System Supported: | GPS, BDS, Glonass, Galileo | |
| Battery | Lithium Battery (DC14.4V) | Lithium Battery (DC13.5V) |
| Battery Working Hours | ≥ 48 h | |
| Antenna | Vertical Polarization | |
| Strobe light | White LED, 20 times/min | |
| Environment Requirements | ||
| Operating Temperature: | -20℃ ～ +55℃ | |
| Storage Temperature: | -40℃ ～ +70℃ | |
| Compass Safe Distance: | Standard Compass: 0.35m Steering Compass: 0.15m |
Standard Compass: 0.30m Steering Compass: 0.20m |
| Automatic Release Depth: | 4 meters max (13 feet) | 4 meters max (13 feet) |
| Accessories | Hydrostatic Release Unit
Buoyant lanyard Lanyard for hand-free carry |
|
| Beacon Size | 116 (W)×710 (H)×100 (D) mm | 116.2 (W)×491 (H)×102.4 (D) mm |
| Beacon Weight: | 1.45 kgs | 0.73 kgs |
| Approval | MED or CCS | |
Note:
It’s from the date of manufacture. 9 years(NEB-3000 10 years) consist of 1 year of shelf time and 8 years of onboard time. 5th-year health check is recommended.
The replacement should be done according to requirements of local authorities, if any.
