Clinometers
Clinometers known as inclinometers,with dial type and pendulum type, are required for monitoring the angle of heel and trim to ensure stability and safety.
- Available with dial type and pendulum type
- Marine corrosion resistance
- CCS approval
Clinometer primary function is as a navigation and safety instrument, it helps optimize fuel efficiency through proper trim adjustment, and assists in loading cargo correctly.
Description
Introduction:
Marine clinometers, also commonly named marine inclinometers, are essential ship‑board navigational safety instrument to visually measure and display a vessel’s heel (transverse roll angle) and pitch (longitudinal trim angle) in real‑time, supporting crew to monitor ship stability and prevent dangerous rolling conditions at sea.
Comply with:
- CB/T 3376-2005 Marine Clinometer
- SOLAS 74 Reg. V/19, Carriage Requirements for Shipborne Navigational Systems and Equipment
Application:
Installed in ship’s bridge, engine control room, centerline of dock.
Clinometers Specification:

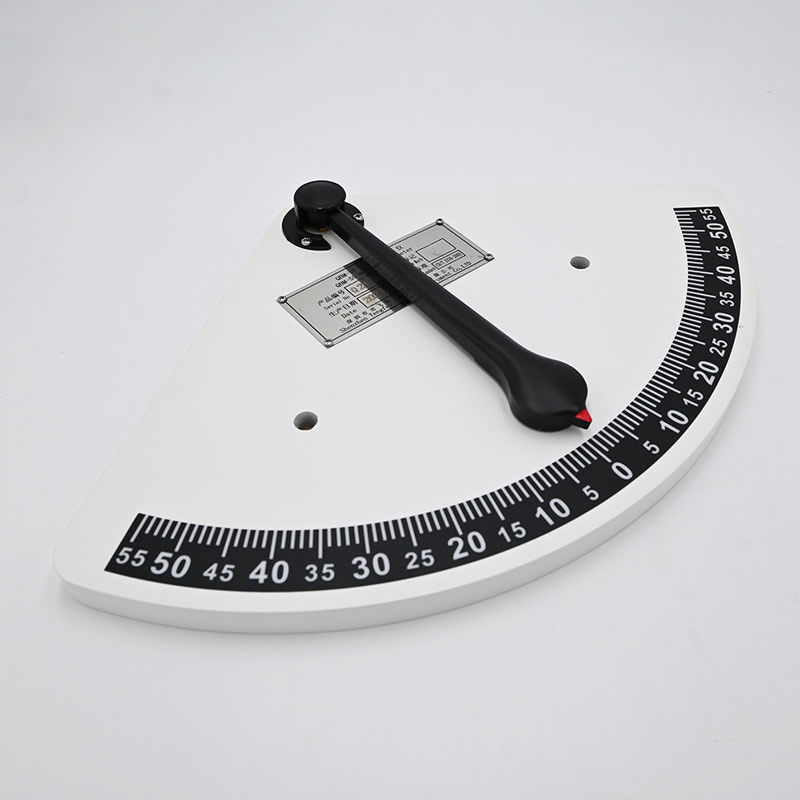

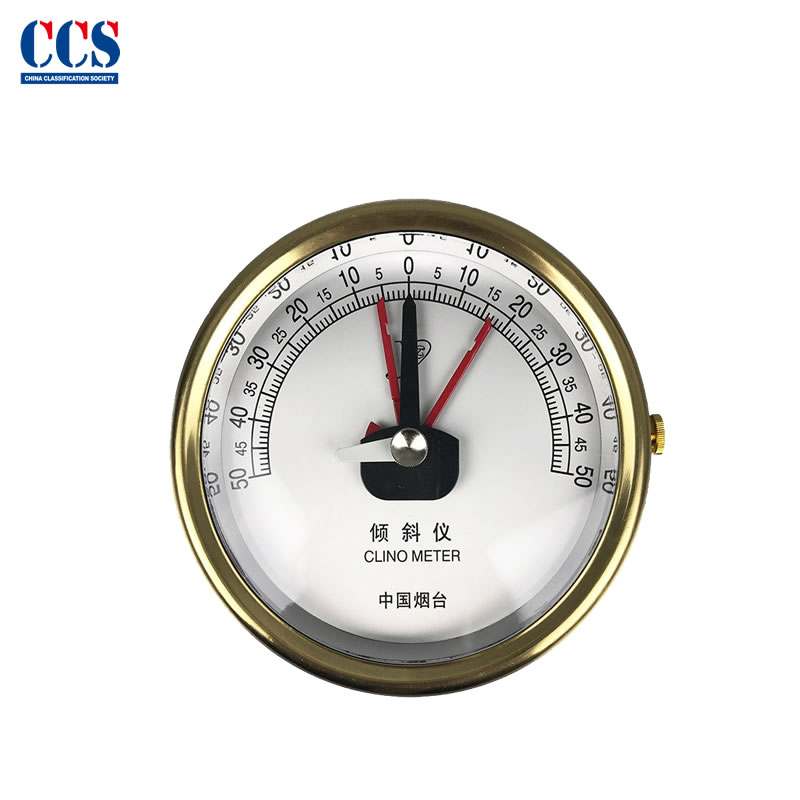

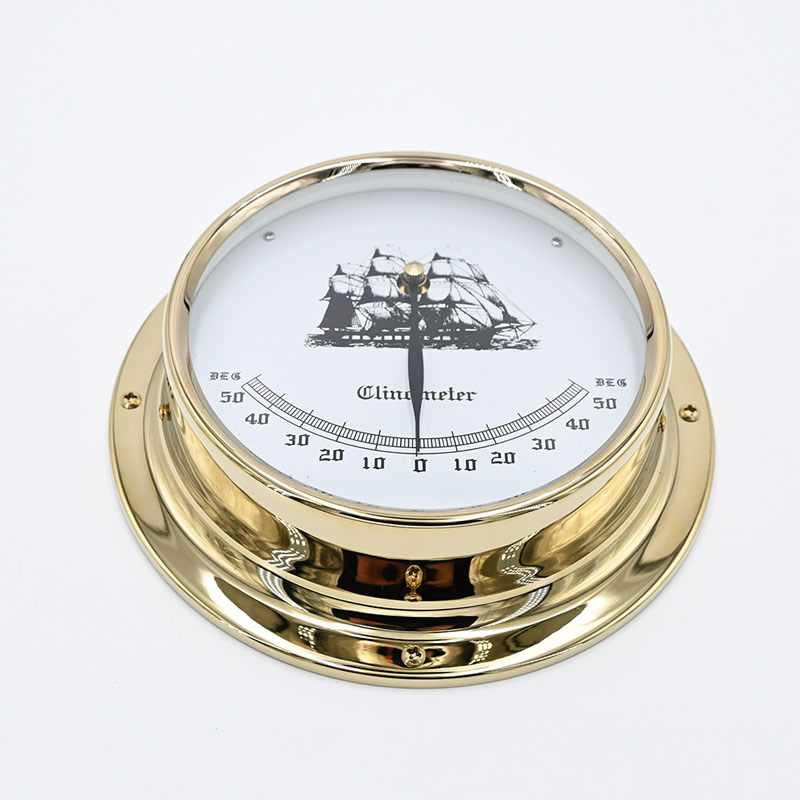

| Model | QBM-55 | QD-50 | GL198-CL |
| Type | Pendulum | Dial | Dial |
| Material | Bakelite | Brass with Alu. Alloy | Brass with Alu. Alloy |
| Indication Range | ±55° | ±50° | ±50° |
| Indication Error | ≤±0.5° | ≤±1.5° | ≤±1.5° |
| Sensitivity | ≤0.4° | ≤0.5° | ≤0.5° |
| Scale Division | 1° | 1° | 1° |
| Size | 370×240 mm | 150(Dia)×65(T) mm | 125(Dia)×45(T) mm |
| Weight | 0.9 Kgs | 1.1 Kgs | 0.6 Kgs |
| Certificate | CCS | CCS | Calibration |
