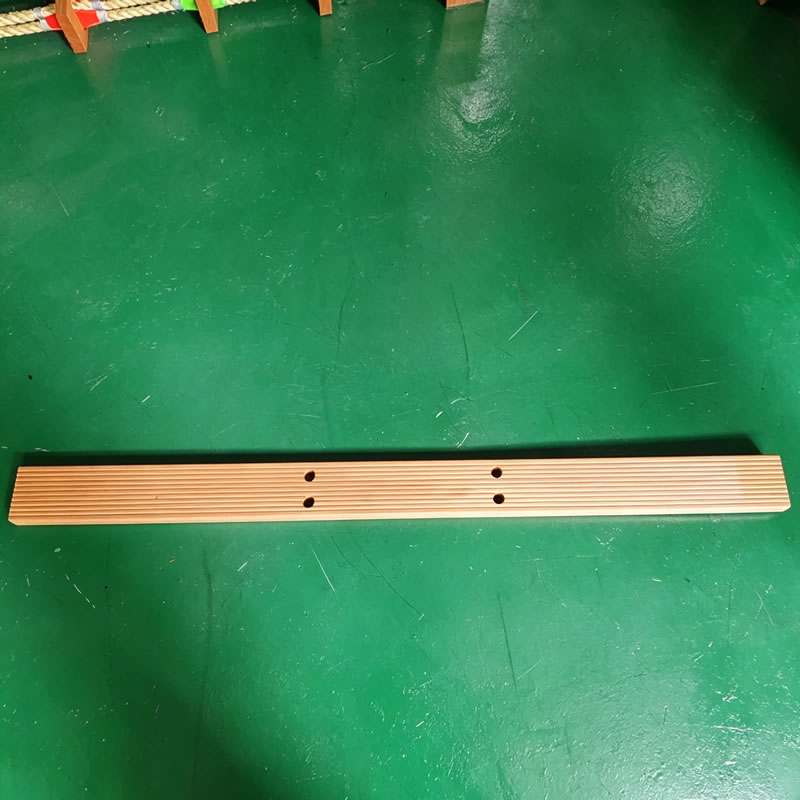

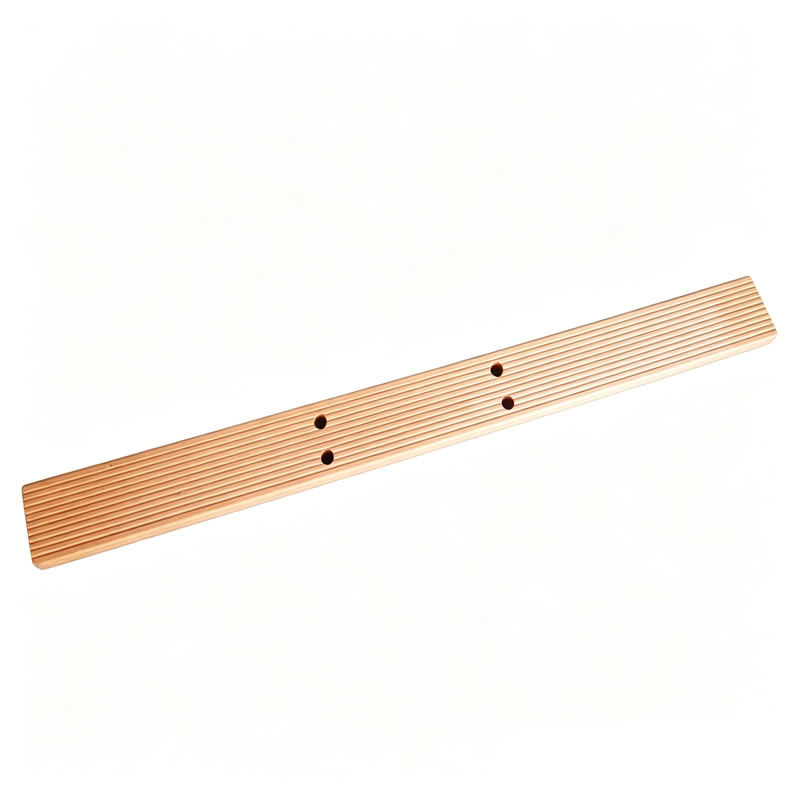

Pilot Ladder Spreader Step
Pilot Ladder Spreader Step is a critical hardwood step integrated into a marine pilot ladder to prevent ladder from twisting, ISO 799 required size is 1800×115×25mm.
- Compliant to ISO 799
- Dried Hardwood
- Non-skid grooved surface
- Wax dipped on both sides only, no paint
According to ISO 799, wooden steps shall not be treated or coated with paint, varnish or other coatings, which either change the friction coefficient or hide the natural grain.
Description
Introduction:
Pilot Ladder Spreader Step shall be ISO 799 and SOLAS-compliant steps with dimension roughly 1800 × 115 × 28 mm, no coated and knot-free. And all steps must be dried, as excess moisture causes to rot, swell, and lose structural integrity, directly violating SOLAS and IMO safety regulations.

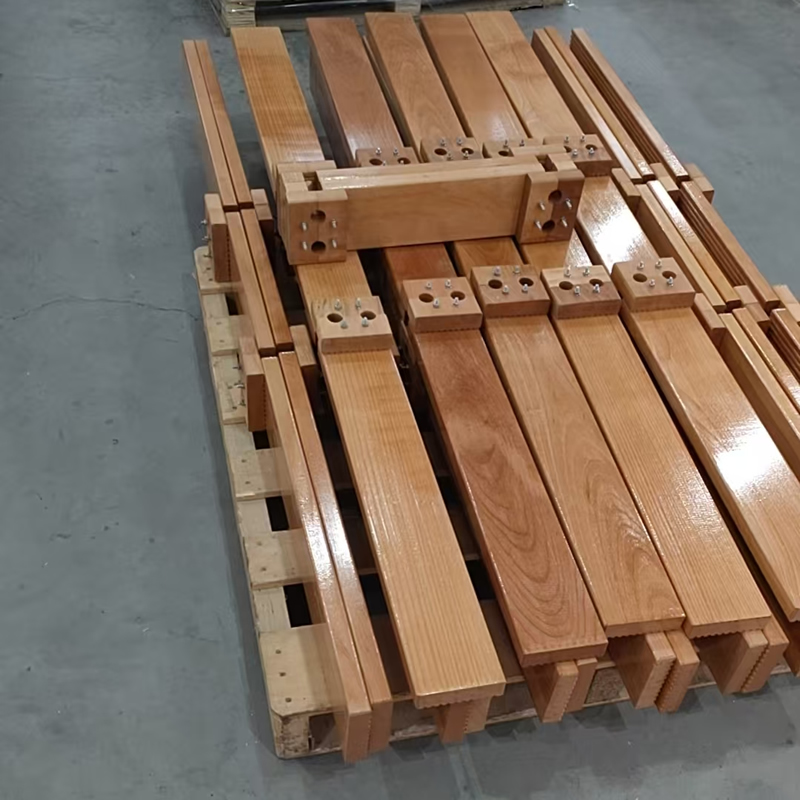

Replacement steps are also available to ensure easily replaced on board the vessel without needing to completely unstring the entire ladder.
Intended for:
Manufacture and repair Pilot Ladder.
Specification:
| Part Name | Spreader Steps |
| Dimension | 1800×115×28mm / 1800×120×28mm |
| Hols | 4×25mm (extra hole 10mm) |
| Wood Material | European Dried Beech/ Rubberwood |
| Surface | Non-slip groove |
| Treatment | Wax dipped on both sides, no paint |
| Anti-corrosion Treatment (Required by client) | Whole step dipped in wood oil |
| Static Load | ≥8.8 kN |
